WEET SQM Radial Cement Ceramic Resistor

Excellent heat resistance, low temperature coefficient of resistance and linear change.
It can withstand short-term overload, low noise, and the resistance value has not changed over the years.
Good explosion-proof performance and protection.

WEET SQM Series Radial Cement Ceramic Resistor

DATASHEET

https://www.musicaps.com/Uploads/PDF/WEET-SQM-Sereis-Radial-Cement-Housed-Ceramic-Resistor.pdf

INTRODUCTION

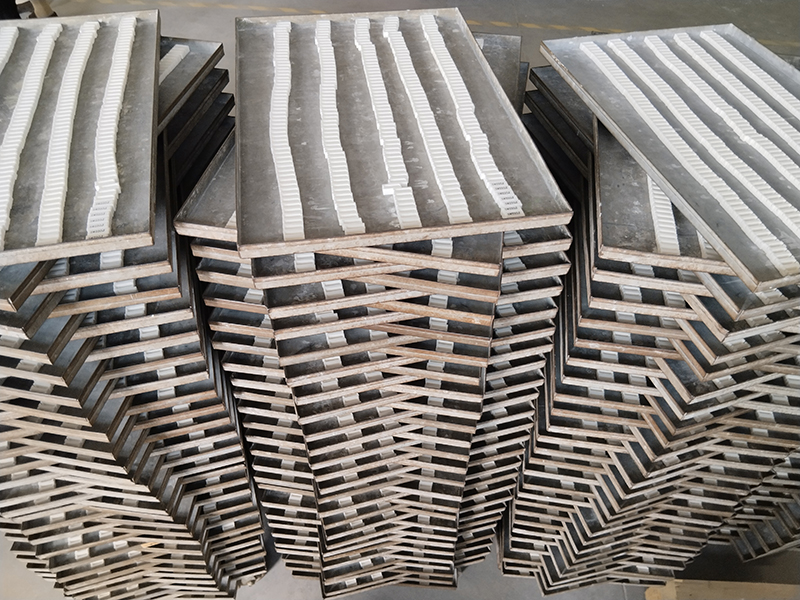

Cement Ceramic resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it in a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
Excellent heat resistance, low temperature coefficient of resistance and linear change.
It can withstand short-term overload, low noise, and the resistance value has not changed over the years.
Good explosion-proof performance and protection.

SIZE TABLE

Series	Power Rating	Dimension(mm)						Ød
	(Watt)	Normal	Mini.	Normal	Mini.	Normal	Mini.
	(Watt)	L		W		S
SQM	2W	20.0±1.0	-	11.0±1.0	-	7.0±1.0	-	0.7±0.05
SQM	3W	25.0±1.5	20.0±1.5	12.0±1.0	11.0±1.0	8.0±1.0	7.0±1.0	0.78±0.05
SQM	5W	25.0±1.5	25.0±1.5	13.0±1.0	12.0±1.0	9.0±1.0	8.0±1.0	0.78±0.05
SQM	7W	39.0±1.5	25.0±1.5	13.0±1.0	13.0±1.0	9.0±1.0	9.0±1.0	0.78±0.05
SQM	10W	51.0±1.5	35.0±1.5	13.0±1.0	16.0±1.0	10.0±1.0	12.0±1.0	0.78±0.05
SQM	15W	51.0±1.5	35.0±1.5	13.0±1.0	16.0±1.0	10.0±1.0	12.0±1.0	0.78±0.05

SPECIFICATIONS

Power Rating 70℃	2W	3W	5W	7W	10W
Power Rating 70℃	3WS	5WS	7WS	10WS	-
Series Number	SQM
Operating Temp. Range	-55℃~ +155℃
Max. Working Voltage	250V	350V	350V	500V	500V
Max. Overload Voltage	500V	700V	700V	1000V	1000V
Dielectric Withstanding Voltage(AC)	500V	700V	700V	1000V	1000V
Value Range ±5% (Ceramic Core)	0.1Ω - 47Ω	0.1Ω - 100Ω	0.1Ω - 180Ω	0.1Ω - 470Ω	0.1Ω -680Ω
Value Range ±5% (Metal Oxide Film)	48Ω -100KΩ	110Ω -100KΩ	180Ω -100KΩ	471Ω -10KΩ	681Ω -10KΩ
Temp. Coefficient (PPM)	±300ppm/℃
