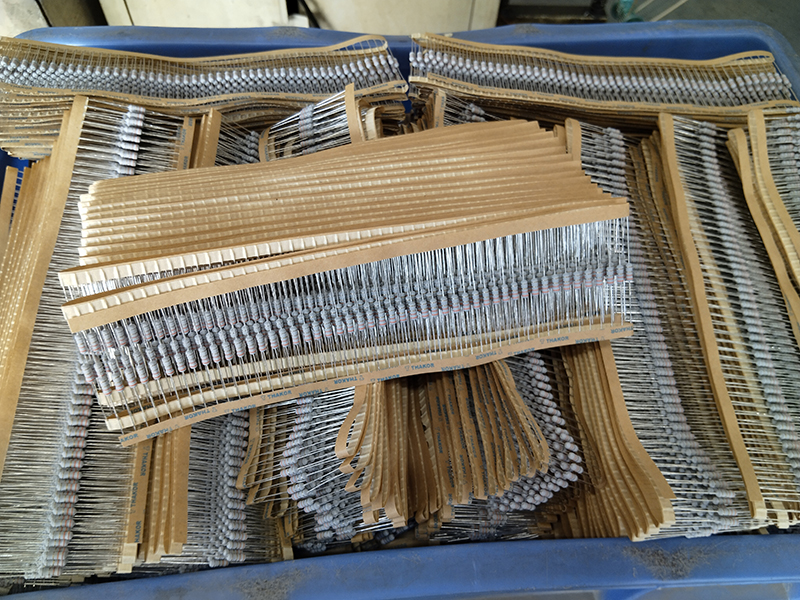

WEET MO Series Metal Oxide Resistor

High Power-to-Size ratio for significant space savings
Excellent long-term stability
Complete flameproof construction
High surge/overload capability
Wide Resistance range: 1Ω~180KΩ
Standard tolerance: ±1%, ±2%, ±5%

WEET MO Series Metal Oxide Resistor

DATASHEET

https://www.musicaps.com/Uploads/PDF/WEET-MO-Sereis-Metal-Oxide-Resistor.pdf

INTRODUCTION

Complete flameproof construction. Metal Oxide also can replace many low power general purpose wire wound applications, saving both money and time with shorter delivery cycles.

These Metal Oxide Resistors offer excellent performance in applications where stability and uniformity of characteristics are desired.

They provide lower cost alternative to Carbon Composition Resistors and General Purpose Metal Films.

Metal Oxide resistors also can replace many low power general purpose wire wound applications.

Saving both time and money, with shorter delivery cycles.

SIZE TABLE

Series	Power Rating	Dimension(mm)				Value Range
Series	(Watt)	L	ØD	H	Ød	Value Range
MO	1/4W, 1/2WS	6.0±0.2	23±0.3	26.5±2	0.5±0.05	1Ω-180KΩ
MO	1/2W, 1WS	9.5±0.5	3.2±0.5	26±2	0.58±0.05	1Ω-180KΩ
MO	1W, 2WS	11.0±0.5	4.5±0.5	35±2	0.68±0.05	1Ω-180KΩ
MO	2W, 3WS	15±0.5	5.0±0.5	32±2	0.78±0.05	1Ω-180KΩ
MO	3W, 5WS	17±0.5	6.0±0.5	32±2	0.78±0.05	1Ω-180KΩ
MO	5W, 7WS	25±1.0	8.0±0.5	35±3	0.78±0.05	1Ω-180KΩ
MO	10W	53±1.0	8.0±0.5	35±3	0.78±0.05	1Ω-180KΩ

SPECIFICATIONS

Power Rating 70℃	1/4W, 1/2WS	1/2W, 1WS	1W, 2WS	2W, 3WS	3W, 5WS	5W, 7WS	10W
Series Number	MO
Operating Temp. Range	-55℃~ +155℃
Max. Working Voltage	250V	350V	350V	350V	500V	600V	800V
Max. Overload Voltage	400V	400V	600V	600V	800V	800V	1000V
Dielectric Withstanding Voltage(AC)	300V	350V	350V	500V	1000V	1000V	1000V
Max. Intermittence Overload Voltage	400V	700V	1000V	1000V	1000V	1000V	1000V
Value Range ±1%, ±2%, ±5%,	1Ω-180KΩ
Temp. Coefficient (by Type)	±350ppm/℃
