WEET KNP KNS Series Wire Wound Resistor

Wire wound resistors are made by winding the resistance wire non-corrosive, heat-proof and humidity-proof material.
Delivery from stock in bulk taped, and strip pack.
Exceptional long-term stabiligy
Standard tolerance：± 1%, ± 2%, ± 5%

WEET KNP KNS Series Wire Wound Resistor

DATASHEET

https://www.musicaps.com/Uploads/PDF/WEET-KNP-KNS-Sereis-Wire-Wound-Resistor.pdf

INTRODUCTION

Wire wound resistors are made by winding the resistance wire

non-corrosive,heat-proof and humidity-proof material.

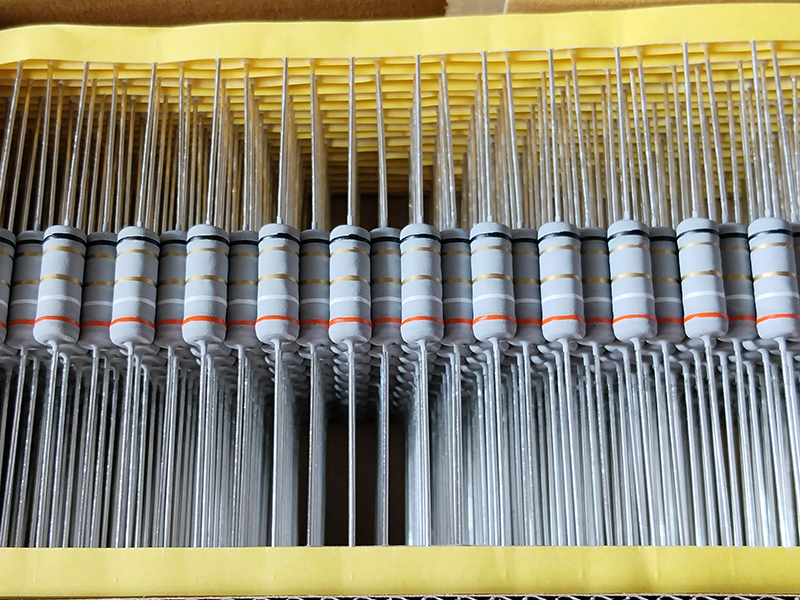

Delivery from stock in bulk taped, and strip pack.

Exceptional long-term stability

Standard tolerance：±1%, ±2%, ±5%

SIZE TABLE

Series	Power Rating	Dimension(mm)
Series	(Watt)	L	ØD	H	Ød
KNP-1/2W	KNS-1W	9.2±1.0	3.5±0.5	26±2.0	0.58±0.05
KNP-1W	KNS-2W	11.5±1.0	4.5±0.5	35±2.0	0.78±0.05
KNP-2W	KNS-3W	15.5±1.0	5.0±0.5	33±2.0	0.78±0.05
KNP-3W	KNS-4W	17.5±1.0	6.0±0.5	32±2.0	0.78±0.05
KNP-4W	KNS-5W	17.5±1.0	6.0±0.5	32±1.0	0.78±0.05
KNP-5W	KNS-7W	24.5±1.0	8.0±0.5	38±1.0	0.78±0.05
KNP-7W	KNS-10W	30.0±1.0	8.0±0.5	38±1.0	0.78±0.05
KNP-8W		40.0±1.0	8.0±0.5	38±1.0	0.78±0.05
KNP-10W		53.0±1.0	8.0±0.5	38±1.0	0.78±0.05

SPECIFICATIONS

Power Rating 70℃	KNP-1/2W	KNP-1W	KNP-2W	KNP-3W	KNP-4W	KNP-5W	KNP-7W	KNP-8W	KNP-10W
Series Number	KNS-1W	KNS-2W	KNS-3W	KNS-4W	KNS-5W	KNS-7W	KNS-10W	-	-
Operating Temp. Range	-55℃~ +155℃
Dielectric Withstanding Voltage(AC)	500V	500V	500V	500V	500V	500V	500V	800V	1000V
Value Range ±5%	0.1Ω-300Ω	0.1Ω-499Ω	0.1Ω-1.5KΩ	0.1Ω-1.5KΩ	0.1Ω-1.5KΩ	0.5Ω-3KΩ	0.5Ω-3KΩ	1Ω-3KΩ	1Ω-3KΩ
Temp. Coefficient (by Type)	±350ppm/℃
