High precision and low temperature coefficient
Resistance Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%, ±0.05%,±0.01%,
T.C.R/℃: ±5ppm/℃,±10ppm/℃,±15ppm/℃,±25ppm/℃,±50ppm/℃,±100ppm/℃
Mainly used in the industries of precision instruments, electronic measurement.

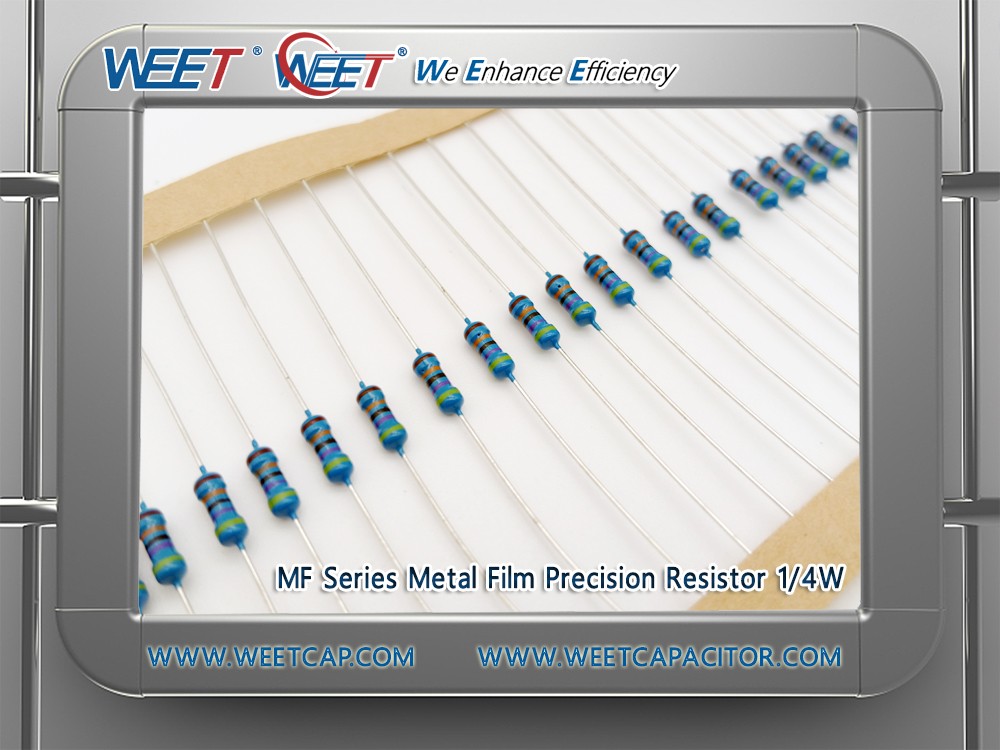

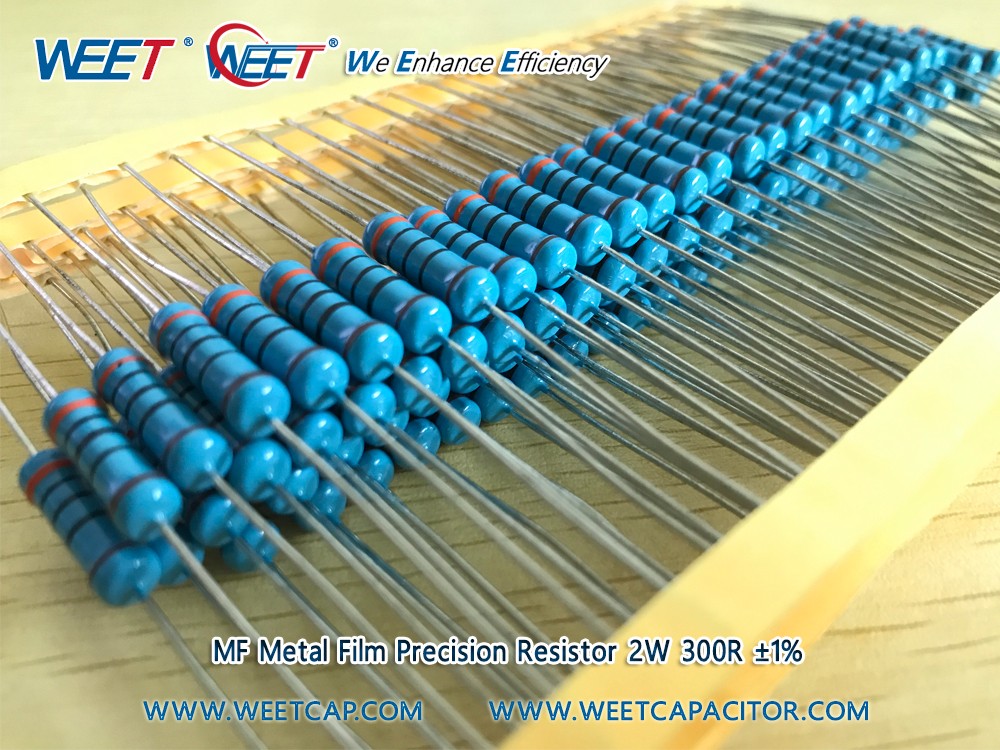

WEET MF Series Metal Film Precision Resistor
DATASHEET
https://www.musicaps.com/Uploads/PDF/WEET-MF-Sereis-Metal-Film-Precision-Resistor.pdf
INTRODUCTION
WEET MF Series Metal Film Precision Resistor
High precision and low temperature coefficient
Resistance Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%, ±0.05%,±0.01%,
T.C.R/℃: ±5ppm/℃,±10ppm/℃,±15ppm/℃,±25ppm/℃,±50ppm/℃,±100ppm/℃
Mainly used in the industries of precision instruments, electronic measurement.
SIZE TABLE
| Power Rating 70℃ | 1/6W, 1/8W, 1/4WS | 1/4W, 1/2WS | 1/2W, 1WS | 1W, 2WS | 2W, 3WS, 3W, 5W 5WS |
| Series Number | MF | ||||
| Operating Temp. Range | -55℃~ +155℃ | ||||
| Max. Working Voltage | 200V | 250V | 350V | 500V | 500V |
| Max. Overload Voltage | 400V | 600V | 700V | 1000V | 1000V |
| Dielectric Withstanding Voltage(AC) | 300V | 500V | 700V | 1000V | 1000V |
| Max. Intermittence Overload Voltage | 400V | 600V | 700V | 1000V | 1000V |
| Value Range ±0.25%, ±0.5%, ±1%, ±0.1% | 10Ω-1MΩ | ||||
| Value Range ±0.05%, ±0.1% | 100Ω-100KΩ | ||||
| Temp. Coefficient (by Type) | ±5ppm/℃,±10ppm/℃,±15ppm/℃,±25ppm/℃,±50ppm/℃,±100ppm/℃ | ||||
