WEET WMS BP Axial Non polar Aluminum Electrolytic Capacitors for Audio and Amplifier System
Features

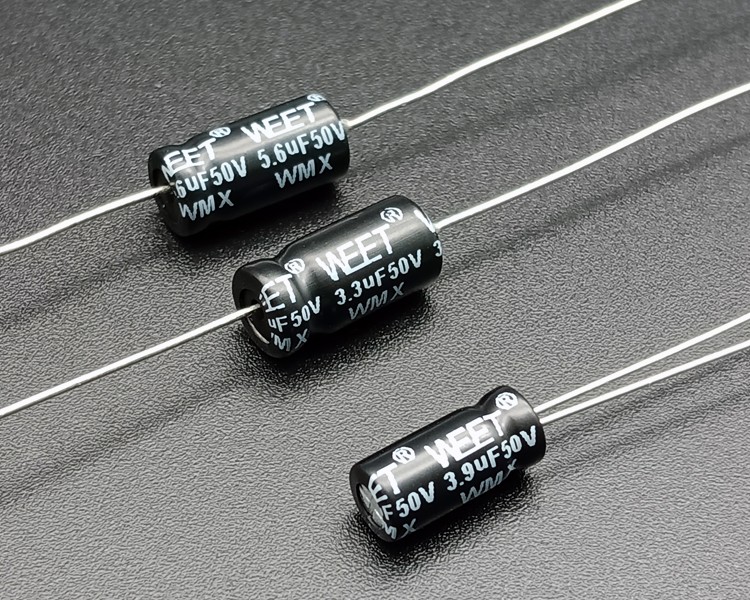

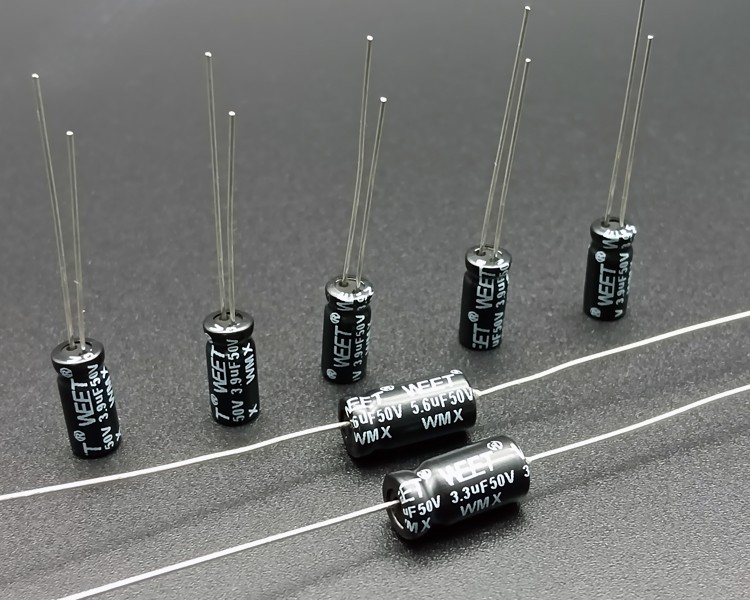

WEET WMX Small Size NP Aluminum Electrolytic Capacitors for Audio and Speaker System
Low Dissipation Factor, MAX 15% at 1KHz
Smaller size and Radial type for speaker applications
Specially produced for Cross-Over Networks with high fidelity audio system
Note 1：Other Dissipation Factor 3%, 4%, 6%, 7%, 8%, 9%, 10%, 12% are available on request.
Note 2：The sleeve (PET) color of the product differs from batch to batch, so there will be slight color difference. Thank you
| Capacitance Tolerance | ± 10%(K),or ±20%(M)at 1KHZ |
| Leakage Current | (1) WMX-R，WMX-A : MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage |
| (2) WMX-S : MAX. 0.04CV + 3μA After 5 minutes application of rated working voltage | |
| Temp Range | - 40℃ ～ + 105℃ |
| Load Life | After 1,000 hours application of rated voltage at 105 ± 2℃, capacitors meet the characteristics requirement listed as below |
| (a) Capacitance change: Within ± 25% of initial | |
| (b) Tan δ:200% or less of initial specified | |
| (c) Leakage current : Install specified value or less | |
| MAX Dissipation Factor | MAX 15% at 1KHz |
Main Applications
Smaller size and Radial type for speaker applications
