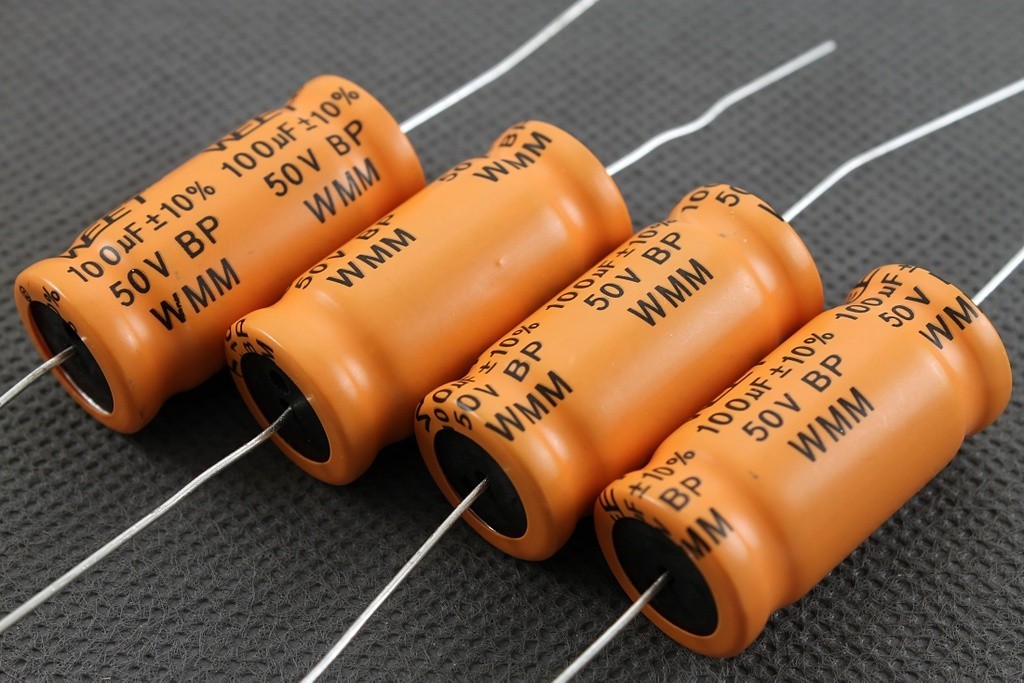

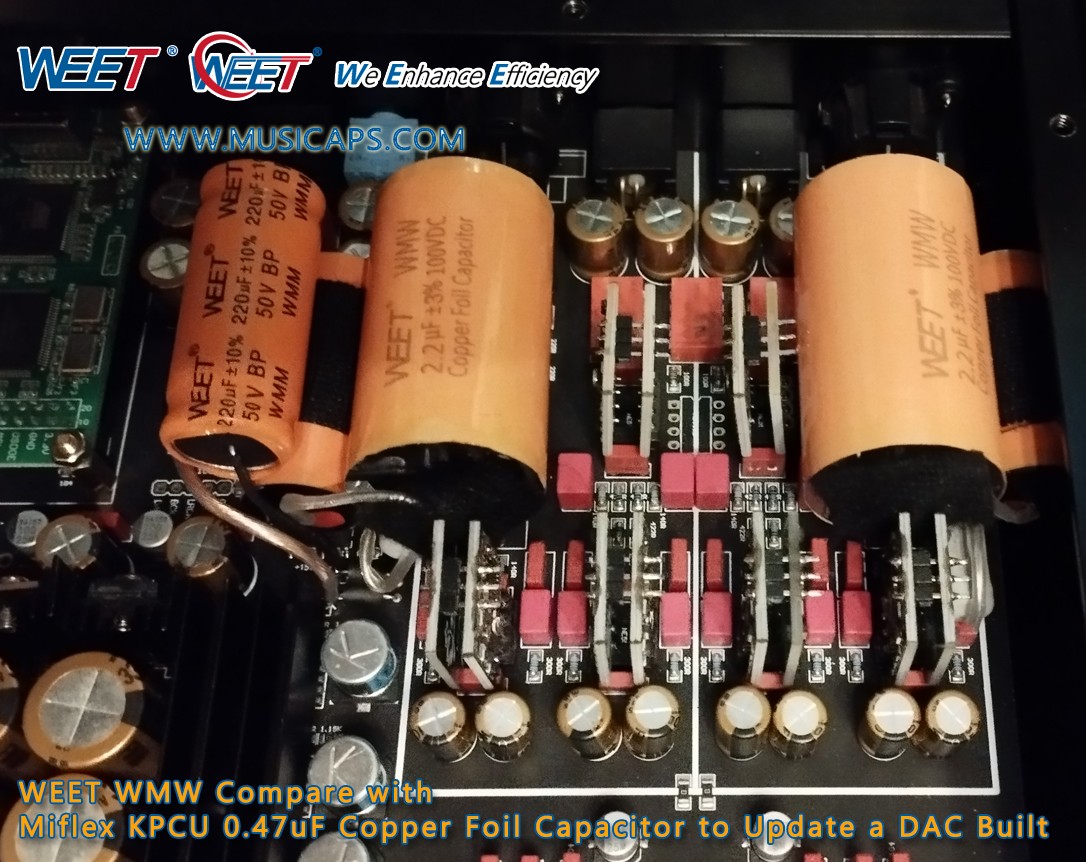

WMM- Bi-polar DF 5% Alum.Elec.Capacitor

WEET WMM BP AXIAL Bi-polar 1KHZ DF 5% Aluminum Electrolytic Capacitors for Audio and Speaker System

DATASHEET

www.musicaps.com/Uploads/PDF/WEET-WMM-BP-AXIAL-Bi-polar-1KHZ-DF-5-Aluminum-Electrolytic-Capacitors-for-Audio-and-Speaker-System.pdf

FEATURES

Low Dissipation Factor, MAX 5% at 1KHz
Specially produced for Cross-Over Networks with high fidelity audio system
High-quality crossover non-polar aluminum electrolytic capacitors
Product mainly used: audio converters and dividers (partials), Audio amp, automotive electronics products, speaker.

Note 1：Other Dissipation Factor 3%, 4%, 6%, 7%, 8%, 9%, 10%, 12% are available on request.
Note 2：The sleeve (PET) color of the product differs from batch to batch, so there will be slight color difference. Thank you.
Note 3：Radial Bi-polar 1KHZ DF 5% Aluminum Electrolytic Capacitors available on request.

SPECIFICATIONS

Operating Temperature Range (℃)：	-40℃ ~ +105℃
Capacitance Tolerance ：	±10% ( K ) at 1KHZ，±5% on request
Voltage Range：	50V, 100V.DC
Leakage Current：	MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage
Load Life：	After 1,000 hours application of rated voltage at 105　±2℃, capacitors meet the characteristics requirement listed at right.
	(a) Capacitance change: Within ±25% of initial
	(b) Tan δ:200% or less of initial specified
	(c) Leakage current : Install specified value or less
MAX Dissipation Factor：	MAX 5% at 1KHz

Bi-polar NP Aluminum Electrolytic Capacitors (Radial and Axial) Size Variability

Usually these is no standard size for NP type Aluminum Electrolytic Capacitors, we are more preferable to custom the size according to customer requirement, or WEET help o design the size based on customer application parameter. Here we would like to give an example on the size variability of WMM capacitors among different DF values.

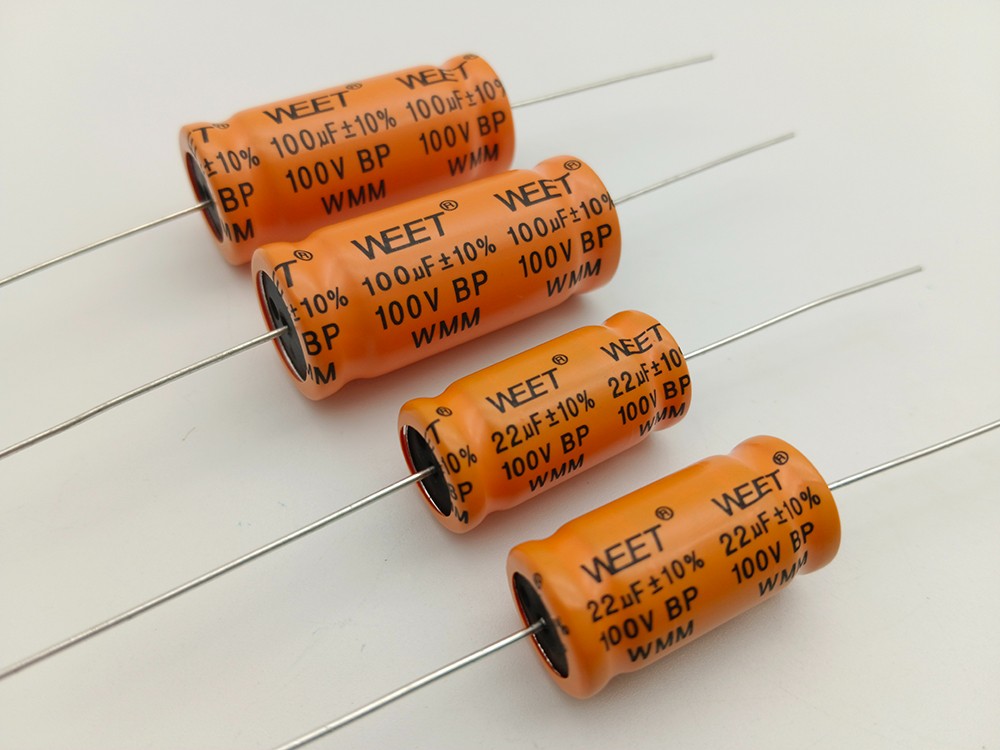

22uF 100V +/-5% ,DF 6% ,10*15mm, Radial Non-polar
22uF 100V +/-5% ,DF 6% ,10*19mm, Axial Non-polar
22uF 100V +/-5% ,DF 5% ,10*24mm, Axial Non-polar
22uF 100V +/-5% ,DF 5% ,13*27mm, Axial Non-polar
22uF 100V +/-5% ,DF 4% ,13*32mm, Axial Non-polar

Capacitance, Voltage and DF testing Result

Note: DF value is proportional to the capacitors size and values of capacitance

WEET-WMM-BP-AXIAL-Bi-polar-1KHZ-DF-5-Aluminum-Electrolytic-Capacitors-for-Speakers-Testing-Result
