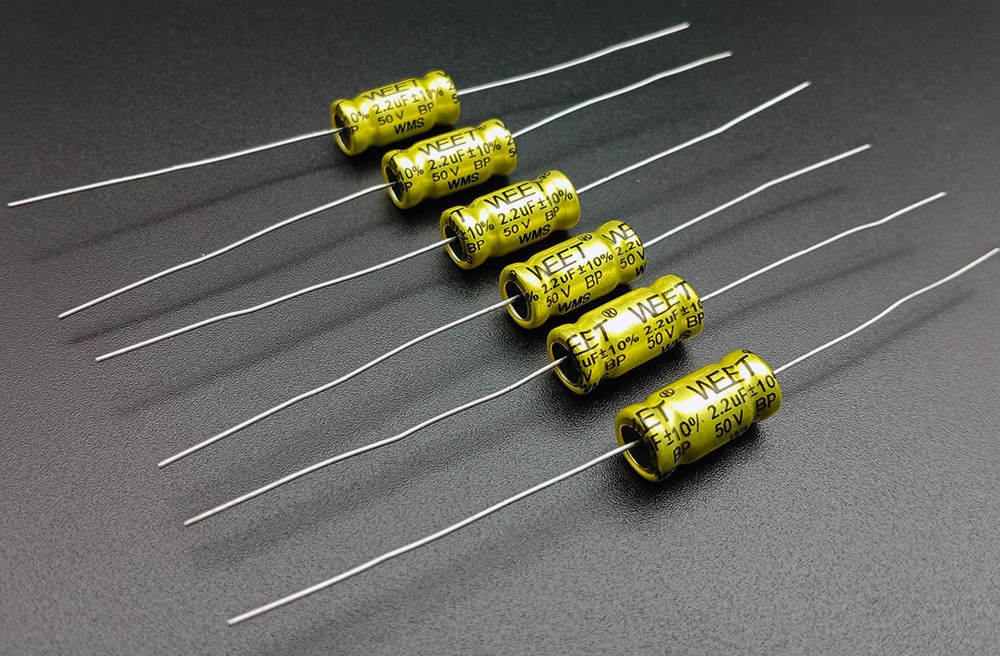

WMS-Non-polar DF 10% Alum.Elec.Capacitor

WEET WMS BP AXIAL Non-polar NP BP 1KHZ DF 10% Aluminum Electrolytic Capacitors for Audio and Amplifier System

WEET WMS BP AXIAL Non-polar NP BP 1KHZ DF 10% Aluminum Electrolytic Capacitors for Audio and Amplifier System


DATASHEET

www.musicaps.com/Uploads/PDF/WEET-WMS-BP-AXIAL-Non-polar-NP-BP-1KHZ-DF-10-Aluminum-Electrolytic-Capacitors-for-Audio-and-Amplifier-System.pdf


FEATURES


Low Dissipation Factor, MAX 10% at 1KHz

Specially produced for Cross-Over Networks with high fidelity audio system

High-quality crossover non-polar aluminum electrolytic capacitors

Product mainly used: audio converters and dividers (partials), Audio amp, automotive electronics products, speaker.

Note 1:Other Dissipation Factor 3%, 4%, 5%, 6%, 7%, 8%, 9%,12% are available on request.

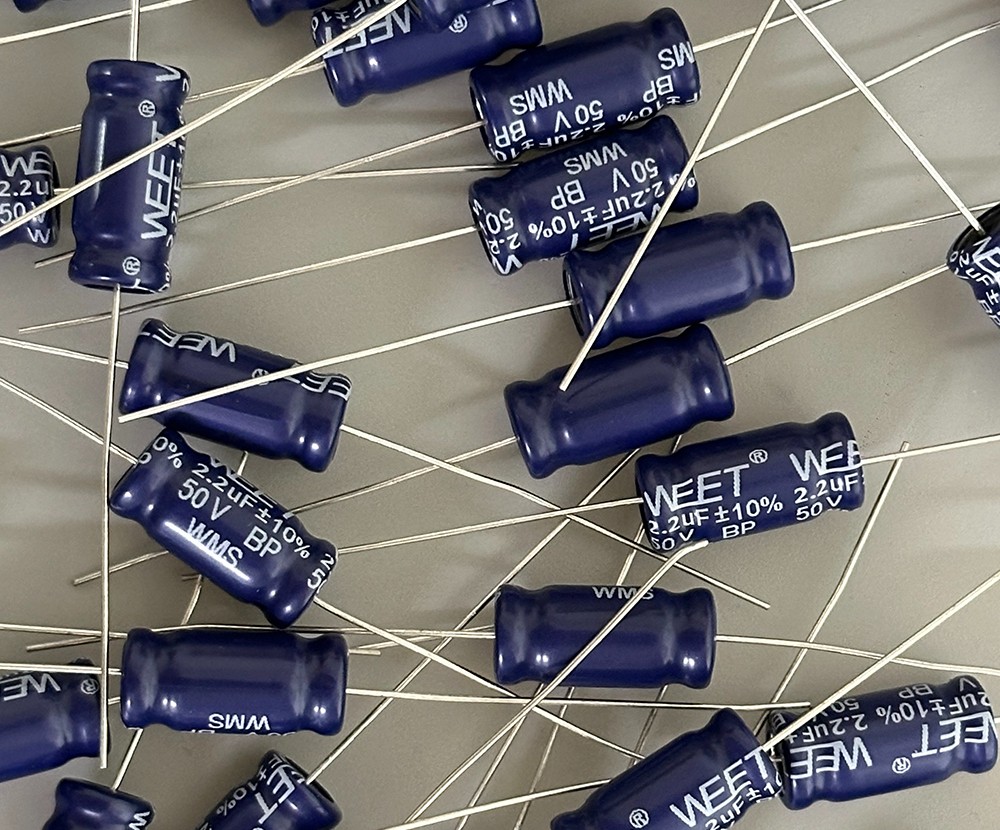

Note 2:The sleeve (PET) color of the product differs from batch to batch, so there will be slight color difference. Thank you.


SPECIFICATIONS

Operating Temperature Range (℃)

-40℃ ~ +105℃

Capacitance Tolerance

±10% ( K ) at 1KHZ

Voltage Range

50V, 100V.DC

Leakage Current

Load Life









 MAX Dissipation Factor

MAX. 0.03CV + 3μA  After 5 minutes application of rated working voltage

After 1,000 hours application of rated voltage at 105 ±2℃, capacitors

meet the characteristics requirement listed at right.

(a)   Capacitance change: Within ±25% of initial

(b)   Tan δ:200% or less of initial specified

(c)   Leakage current : Install specified value or less

MAX 10% at 1KHz
