WAC Dual Polarized Alum.Elec.Capacitor

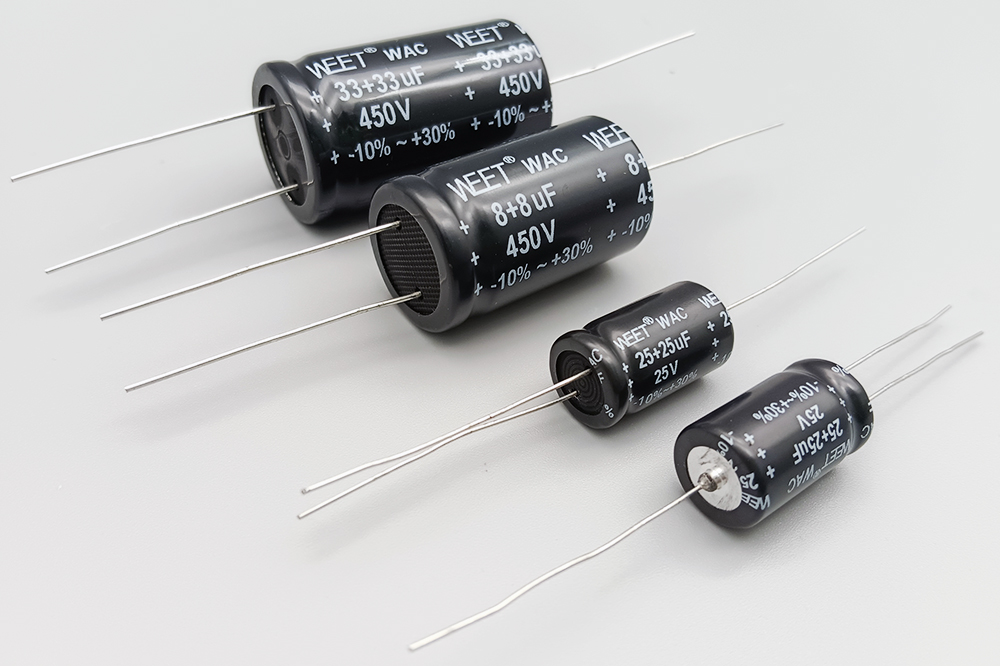

WEET WAC Dual Section Axial Polarized Aluminum Electrolytic Capacitors

DATASHEET

www.musicaps.com/Uploads/PDF/WEET-WAC-Dual-Section-Axial-Polarized-Aluminum-Electrolytic-Capacitors.pdf

FEATURES

Polarized, Dual Section,Axial (3 lead)

Load life of 1000 Hours

Comply with the RoHS directive

SPECIFICATIONS

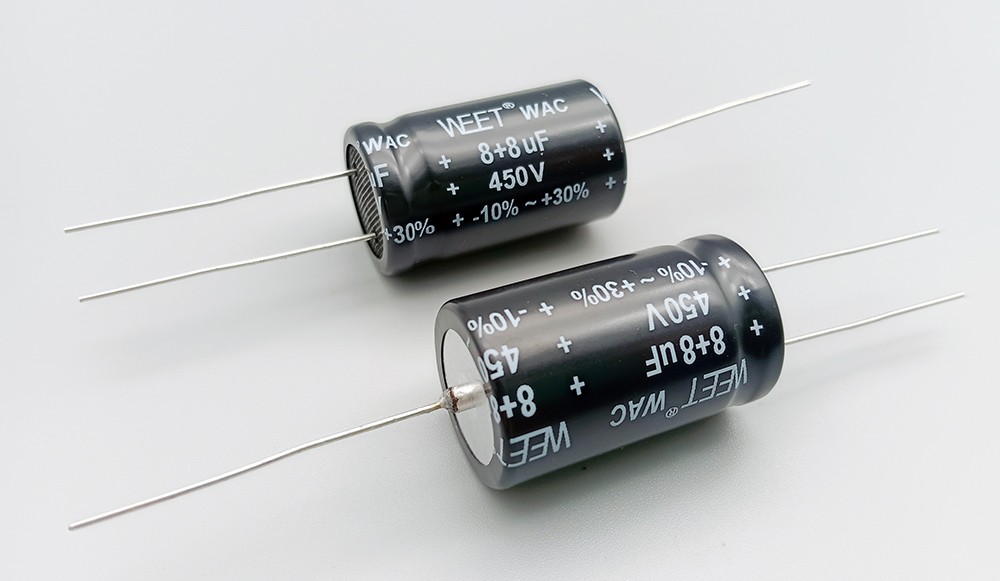

8µF+8µF TOL:-10%~+30%,450V Size:22*37mm (120HZ)DF≦24%

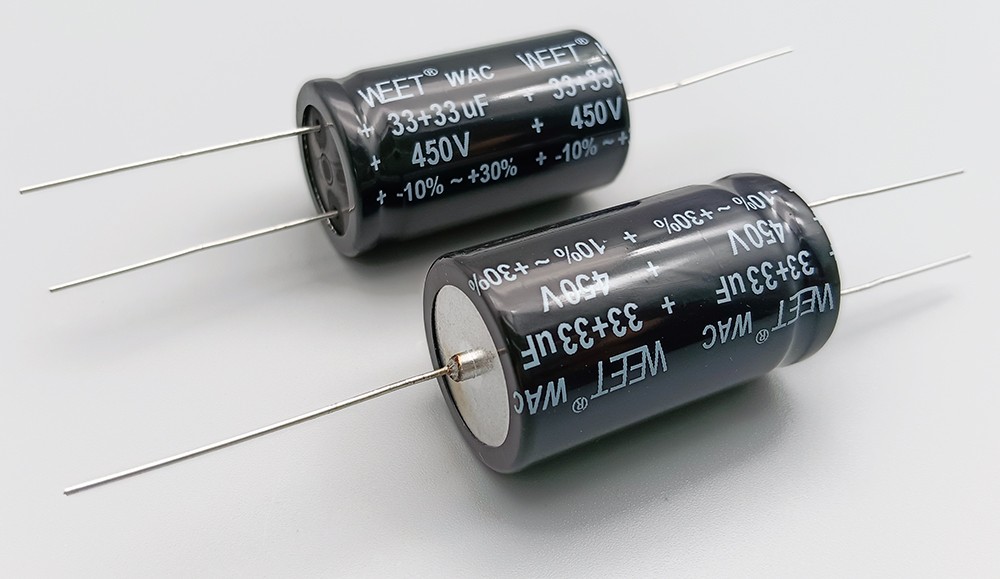

33µF+33µF TOL:-10%~+30%,450V Size:25*43mm (120HZ)DF≦24%

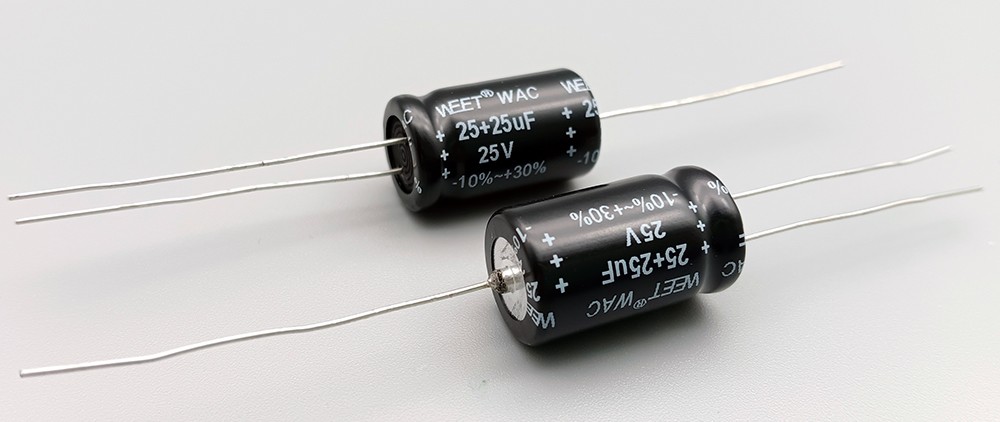

25µF+25µF TOL:-10%~+30%,25V Size:13*22mm (120HZ)DF≦15%

Cross Reference to F&T Type AZ Dual Section Electrolytic Capacitor

25uF+25uF 25Vdc F&T Type AZ Dual Section Electrolytic Capacitor, Specifications Length: 50 mm Diameter: 25 mm

8uF+8uF 450Vdc F&T Type AZ Dual Section Electrolytic Capacitor, Specifications Length: 37.5 mm Diameter: 25 mm

33uF+33uF 450Vdc F&T Type AZ Dual Section Electrolytic Capacitor, Specifications Length: 50 mm Diameter: 25 mm
