WEET WMX Small Size NP Aluminum Electrolytic Capacitors for Audio and Speaker System. Smaller size and Radial type for speaker applications

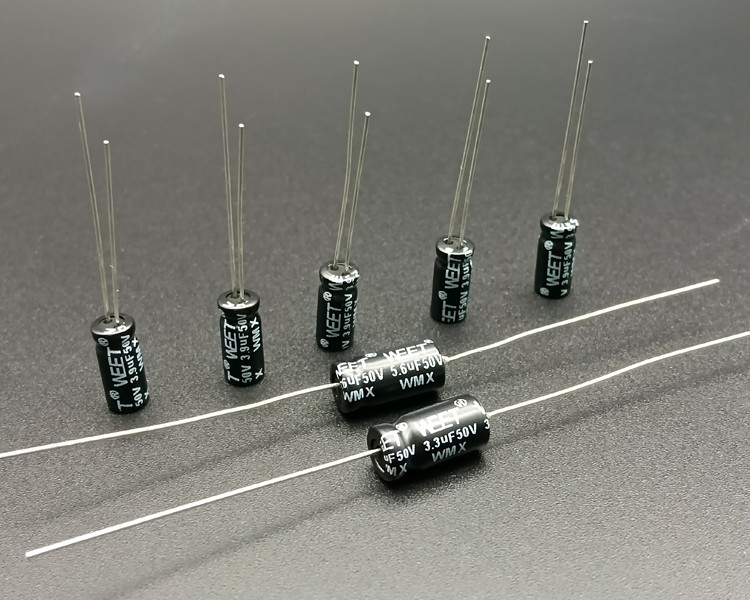

WEET WMX Small Size NP Aluminum Electrolytic Capacitors for Audio and Speaker System
Low Dissipation Factor, MAX 15% at 1KHz
Smaller size and Radial type for speaker applications
Specially produced for Cross-Over Networks with high fidelity audio system
| Capacitance Tolerance | ± 10%(K),or ±20%(M)at 1KHZ |
| Leakage Current | (1) WMX-R，WMX-A : MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage |
| (2) WMX-S : MAX. 0.04CV + 3μA After 5 minutes application of rated working voltage | |
| Temp Range | - 40℃ ～ + 105℃ |
| Load Life | After 1,000 hours application of rated voltage at 105 ± 2℃, capacitors meet the characteristics requirement listed as below |
| (a) Capacitance change: Within ± 25% of initial | |
| (b) Tan δ:200% or less of initial specified | |
| (c) Leakage current : Install specified value or less | |
| MAX Dissipation Factor | MAX 15% at 1KHz |
