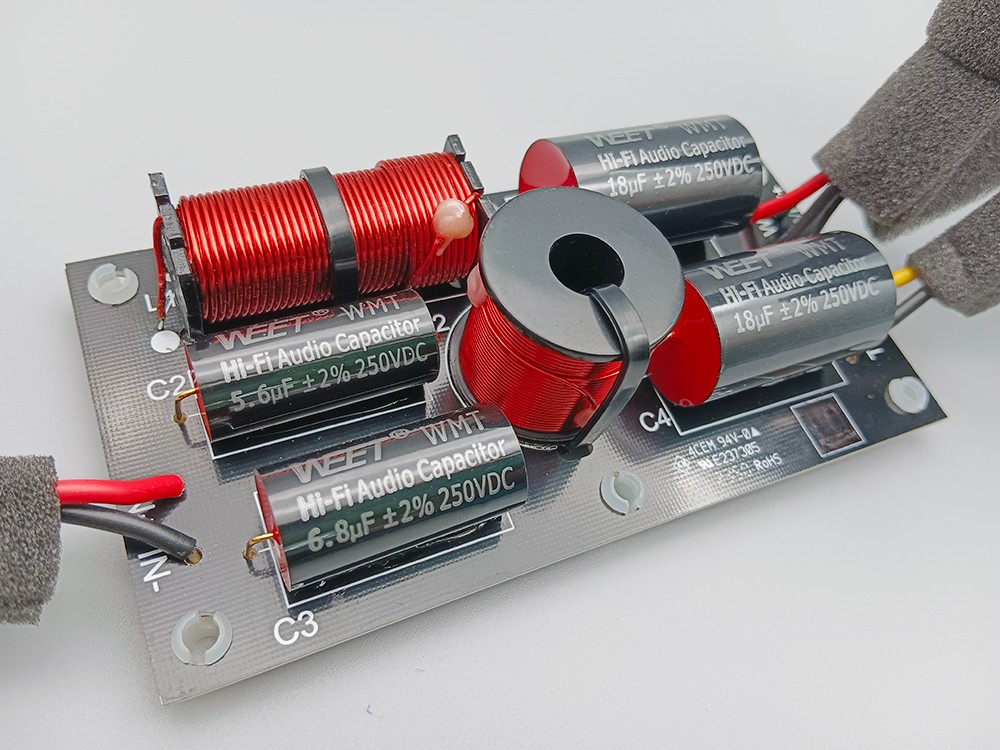

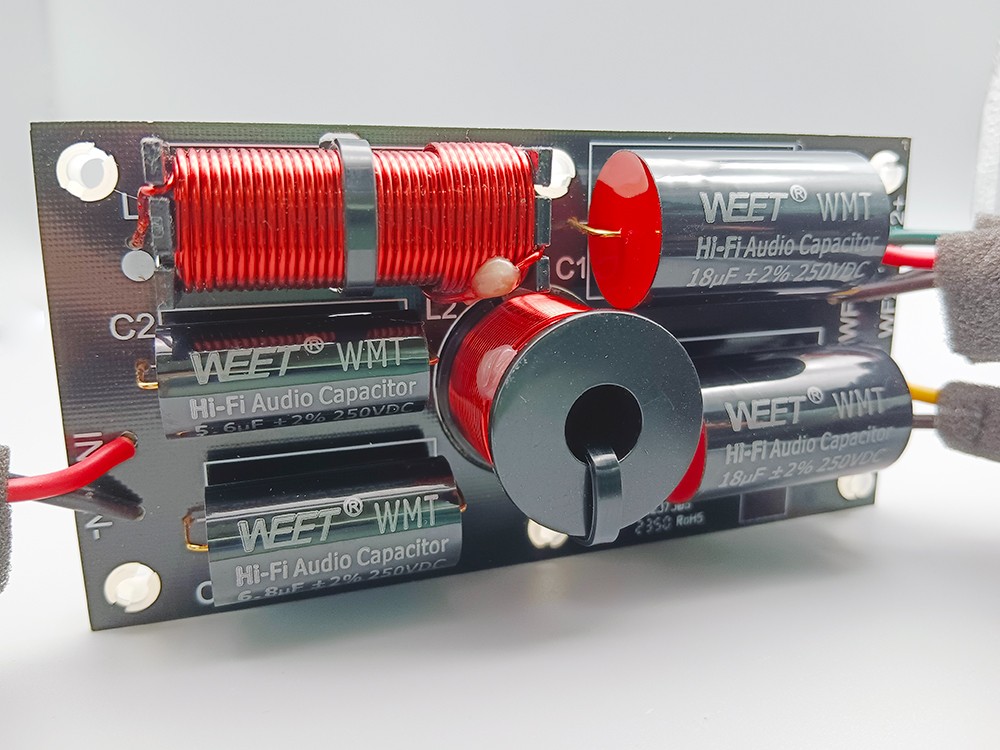

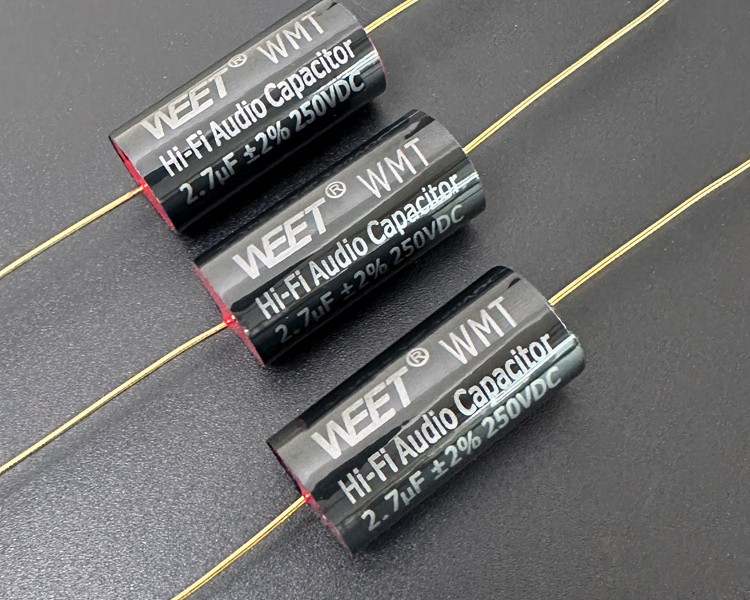

WEET WMT Silver Gold Tinned Copper Wire Condenser Audio Grade MKP Capacitors
Features
Quick transient design
High Precise Capacitance ±2%, ±3%, ±5%
Very Low Dielectric absorption factor
Very Low Dissipation factor, Very Low ESR, Very Low Inductance
Excellent handling of high current audio pulses
The gold-plated copper leads provide long-term high reliability and excellent solder ability
DATASHEET
SPECIFICATIONS
| Passive flammability | GB10191-88 IEC384-16 |
| Operating temperature | -55℃～+85℃ |
| Capacitance range | 0.1~100uF |
| Capacitance tolerance | ±1%, ±2%, ±3%, ±5% 1KHz |
| Rated voltage | 50V、100V、250V、400V、630V.DC |
| Withstand voltage | 1.6VR 5S |
| Dissipation factor | ≤0.0010 1KHz |
| Insulate the electric resistance | CR≤0.33μF, I.R≥15,000MΩ |
| CR>0.33μF, I.R≥5,000S | |
| Leads Diameter | 0.8、1.0 Pure Silver/Gold Tinned Copper Wire |
