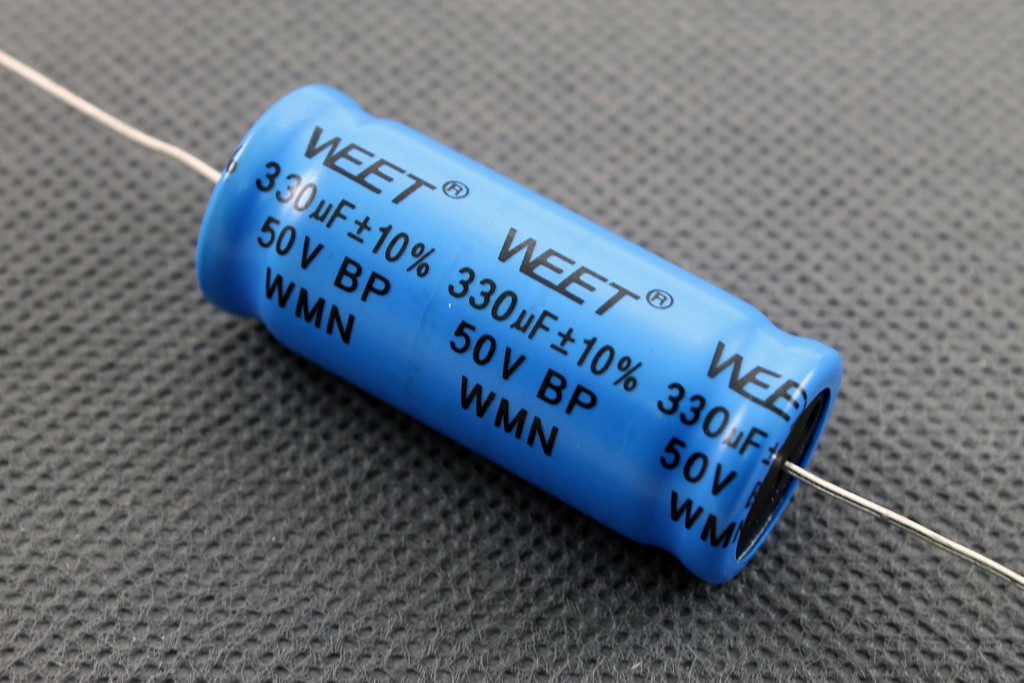

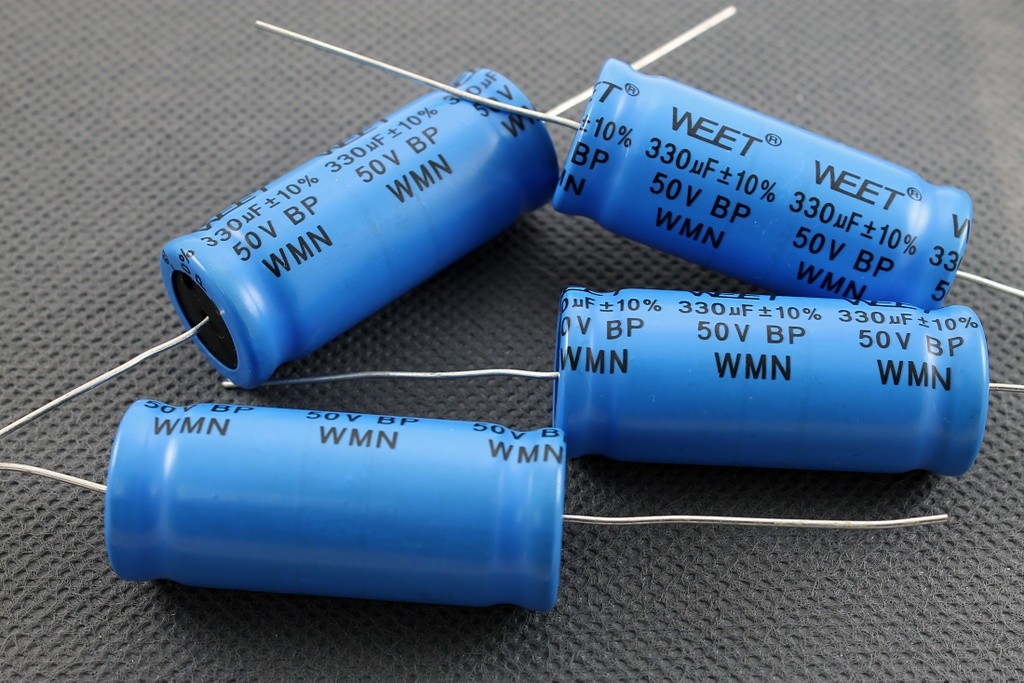

WMN 330uF 50V BP Alum.Elec.Cap.

WEET WMN 330uF 50V Cross Visaton Speaker Driver Capacitors

DATASHEET

www.musicaps.com/Uploads/PDF/WEET-WMN-BP-AXIAL-Bi-polar-120HZ-DF-5-Aluminum-Electrolytic-Capacitors-for-Audio-and-Speaker-System.pdf

FEATURES

Low Dissipation Factor, MAX 5% at 120Hz, Bi-Polarized，105℃ 1000 hours
Specially produced for Cross-Over Networks with high fidelity audio system
High-quality crossover non-polar aluminum electrolytic capacitors
Product mainly used: audio converters and dividers (partials), Audio amp,  automotive electronics products, speaker.

Note 1：Other Dissipation Factor 3%, 4%, 6%, 7%, 8%, 9%, 10%, 12% are available on request.
Note 2：The sleeve (PET) color of the product differs from batch to batch, so there will be slight color difference. Thank you.
Note 3：Radial Bi-polar 1KHZ DF 5% Aluminum Electrolytic Capacitors available on request.

Bi-polar NP Aluminum Electrolytic Capacitors (Radial and Axial) Size Variability

Usually these is no standard size for NP type Aluminum Electrolytic Capacitors, we are more preferable to custom the size according to customer requirement, or WEET help o design the size based on customer application parameter. Here we would like to give an example on the size variability of WMM capacitors among different DF values.

22uF 100V +/-5% ,DF 6% ,10*15mm, Radial Non-polar
22uF 100V +/-5% ,DF 6% ,10*19mm, Axial Non-polar
22uF 100V +/-5% ,DF 5% ,10*24mm, Axial Non-polar
22uF 100V +/-5% ,DF 5% ,13*27mm, Axial Non-polar
22uF 100V +/-5% ,DF 4% ,13*32mm, Axial Non-polar

Main Applications
Specially produced for Cross-Over Networks with high fidelity audio system.Product mainly used in Audio Converters and Dividers (partials), Audio amp, Automotive Electronics Products, speaker and so on

Check WEET Workshop and Manufacturing process

Popular Items cross reference to Visaton brand.
 https://www.visaton.de/en/products/accessories/crossover-parts/electrolytic-capacitors

" I received all items in perfect condition a week ago. I did some tests on WMM series and they perform very well, much better than the Visaton brand."
 --- Comment by Stanislav Nadelyaev from Russia

 For other voltage and capacitance, please check with WEET sales. WEET is capable of doing custom service for you. Thank you.
