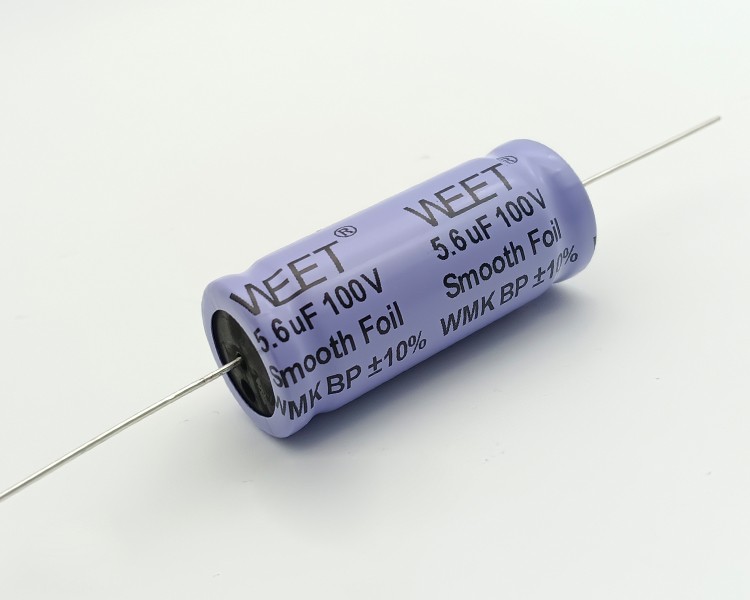

WMK Smooth Foil 5.6uF 100V BP NP E-Cap

DATASHEET: https://www.musicaps.com/Uploads/PDF/WEET-WMK-BP-AXIAL-1KHZ-DF-3-Smooth-Foil-Aluminum-Electrolytic-Capacitors-for-Audio-and-Hifi-System.pdf

Wire Material： Tinned Pure Copper Wire
Low Dissipation Factor, MAX 3% at 1KHz

Specially produced for Cross-Over Networks with high fidelity audio system

The WMK is made with a smooth foil to allow for low loss.

Smooth electrolytic capacitors (ECap plain) are made from unetched and thus lower-loss films.

The smooth foil also provides better performance and sonic properties for audio application

Main Applications

Bipolar electrolytic capacitors , also called audio frequency electrolytic capacitors,

have a second anode foil which makes them AC voltage resistant and thus suitable for music signals.

Rough electrolytic capacitors (E-Cap raw) have foils whose surfaces have been roughened by a special etching process and thus enlarged.

Smooth electrolytic capacitors (E-Cap plain), on the other hand, are made from un-etched and thus lower-loss films.

Cross Reference

WEE Technology WMK Bi Polar and Non Polar Axial 1KHZ DF 3% Smooth Plain Foil Aluminum Electrolytic Capacitors

for Audio and Hifi System.
The WEET Bipolar capacitor is made of smooth foil. Great specifications, good performance for any application requiring bipolar / unipolar capacitors.

Manufacturing Background Customer Testimonials:

A:I did some tests on WMM series and they perform very well, much better than the Visaton brand.

B:The modification of WMK (Changed from CP wire to Copper Wire) was a vast improvement.
With the modification, the capacitor opened up and improved transparency a great deal. WMK to equal the best electrolytic we have tried.
