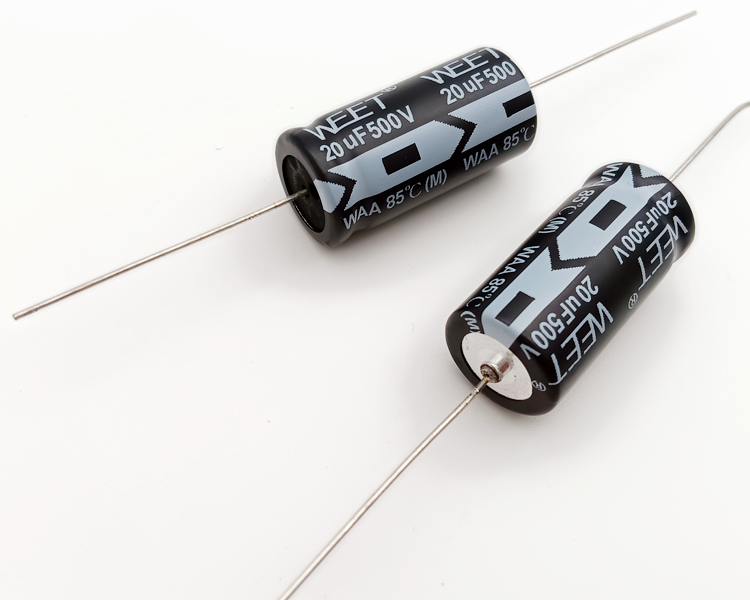

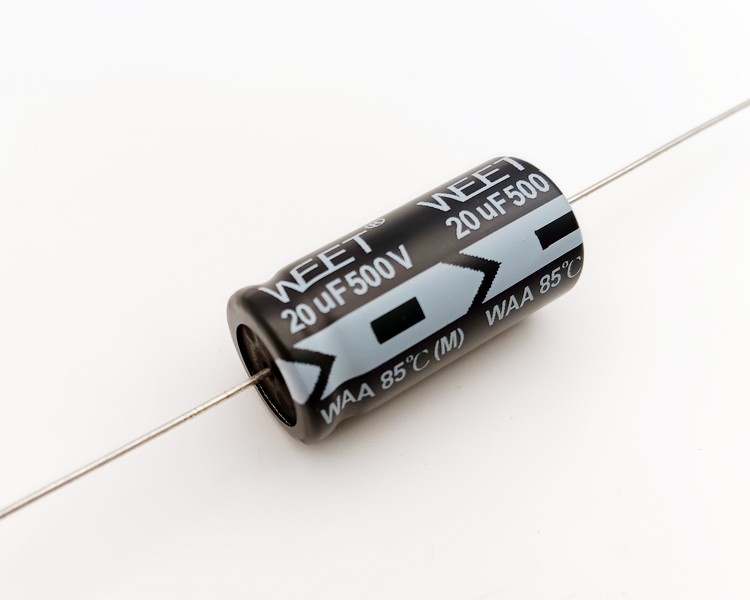

WEET WAA 500VDC 20uF High Capacitance High Ripple Downsizing Capacitors
WEET WAA AXIAL 85°C , 2000H Polarized Aluminum Electrolytic Capacitors Standard Low Voltage
DATASHEET
FEATURES
85℃, 2000 hours assured
Voltage range of 6.3V ~ 450V (500V on request)
Wide operating temperature range, from -40℃~ +85℃
| WEET WAA, WAB Axial Polarized Ecaps Aluminum Electrolytic Capacitors | |||||
| Capacitance | Voltage | Size OD*L:mm | Capacitance | Voltage | Size OD*L:mm |
| 4.7uF | 500V.DC | 13*22 | 20uF | 500V.DC | 16*33 |
| 5.6uF | 500V.DC | 13*22 | 22uF | 500V.DC | 16*33 |
| 6.8uF | 500V.DC | 13*22 | 33uF | 500V.DC | 18*40 |
| 8.0uF | 500V.DC | 13*27 | 47uF | 500V.DC | 22*40 |
| 8.2uF | 500V.DC | 13*27 | 50uF | 500V.DC | 22*40 |
| 10uF | 500V.DC | 13*27 | 70uF | 500V.DC | 25*41 |
| 16uF | 500V.DC | 16*33 | 100uF | 500V.DC | 25*44 |
| OEM Acceptable, Free Samples | Other values are available on request. Thank you | ||||
SPECIFICATIONS
| Operating Temperature Range (°C) | -40℃~+85℃ |
|---|---|
| Capacitance Tolerance (20°C, 120Hz) | ±20% |
| Leakage Current (mA) | I ≤ 0.02CV or 3 (µA) Whichever is greater (after 2 minutes applying the rated DC working Voltage at 20 ℃) |
WEE Technology focus on axial lead electrolytic capacitor, WEET brand, non-polar capacitor, high-temperature resistant capacitor, high-frequency capacitor, super capacitor, axial capacitor, pencil capacitor, audio capacitor
These products are mainly used in switching power supply, power adapter, charger, various household appliances, audio equipment, stage lighting, LED lamp drive power supply, electric vehicle charger, computer power supply, electric welding machine, frequency converter and other fields.
Usually, Axial Polarized Aluminum Electrolytic Capacitors in the market is 2000H and highest voltage is 450V. But our factory has capability to product 5000H and 500V, this is very unique technology. Thank you.
Dimension diameter: Φ 5mm to Φ 25mm
Height (length): 11mm to 52mm
Voltage: 6.3V to 500V
Temperature: - 40 ℃ to+85 ℃，2000H; - 40 ℃ to+105 ℃, 1000H，- 40 ℃ to+105 ℃, 5000H
Capacity: 0.1uF to 10000uF
Service life: 1000 hrs to 2000 hrs, 5000H on request.
Taping Product size: Φ 5mm to Φ 16mm
Package: horizontal (axial through core) electrolytic capacitor
Polarity: Polarized
