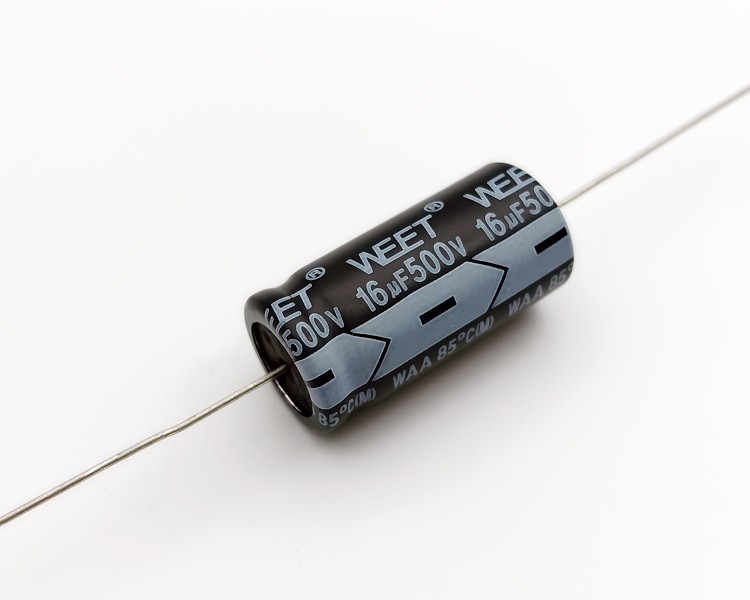

WAA 500VDC 16uF Polarized Alum.Elec.Capacitors

WEET WAA 500VDC 16uF Mundorf Axial Electrolytic Capacitor 85 Deg 500V

WEET WAA AXIAL 85°C , 2000H Polarized Aluminum Electrolytic Capacitors Standard Low Voltage

DATASHEET

www.musicaps.com/Uploads/PDF/WEET-WAA-AXIAL-85C-2000H-Polarized-Aluminum-Electrolytic-Capacitors-Standard-Low-Voltage.pdf

FEATURES

85℃, 2000 hours assured

Voltage range of 6.3V ~ 450V (500V on request)

Wide operating temperature range, from -40℃~ +85℃

WEET WAA, WAB Axial Polarized Ecaps Aluminum Electrolytic Capacitors
Capacitance	Voltage	Size OD*L:mm	Capacitance	Voltage	Size OD*L:mm
4.7uF	500V.DC	13*22	20uF	500V.DC	16*33
5.6uF	500V.DC	13*22	22uF	500V.DC	16*33
6.8uF	500V.DC	13*22	33uF	500V.DC	18*40
8.0uF	500V.DC	13*27	47uF	500V.DC	22*40
8.2uF	500V.DC	13*27	50uF	500V.DC	22*40
10uF	500V.DC	13*27	70uF	500V.DC	25*41
16uF	500V.DC	16*33	100uF	500V.DC	25*44
OEM Acceptable, Free Samples			Other values are available on request. Thank you

SPECIFICATIONS

Operating Temperature Range (°C)	-40℃~+85℃
Capacitance Tolerance (20°C, 120Hz)	±20%
Leakage Current (mA)	I ≤ 0.02CV or 3 (µA) Whichever is greater (after 2 minutes applying the rated DC working Voltage at 20 ℃)

WEE Technology focus on axial lead electrolytic capacitor, WEET brand, non-polar capacitor, high-temperature resistant capacitor, high-frequency capacitor, super capacitor, axial capacitor, pencil capacitor, audio capacitor

These products are mainly used in switching power supply, power adapter, charger, various household appliances, audio equipment, stage lighting, LED lamp drive power supply, electric vehicle charger, computer power supply, electric welding machine, frequency converter and other fields.

Usually, Axial Polarized Aluminum Electrolytic Capacitors in the market is 2000H and highest voltage is 450V. But our factory has capability to product 5000H and 500V, this is very unique technology. Thank you.

Dimension diameter: Φ 5mm to Φ 25mm

Height (length): 11mm to 52mm

Voltage: 6.3V to 500V

Temperature: - 40 ℃ to+85 ℃，2000H; - 40 ℃ to+105 ℃, 1000H，- 40 ℃ to+105 ℃, 5000H

Capacity: 0.1uF to 10000uF

Service life: 1000 hrs to 2000 hrs, 5000H on request.

Taping Product size: Φ 5mm to Φ 16mm

Package: horizontal (axial through core) electrolytic capacitor

Polarity: Polarized

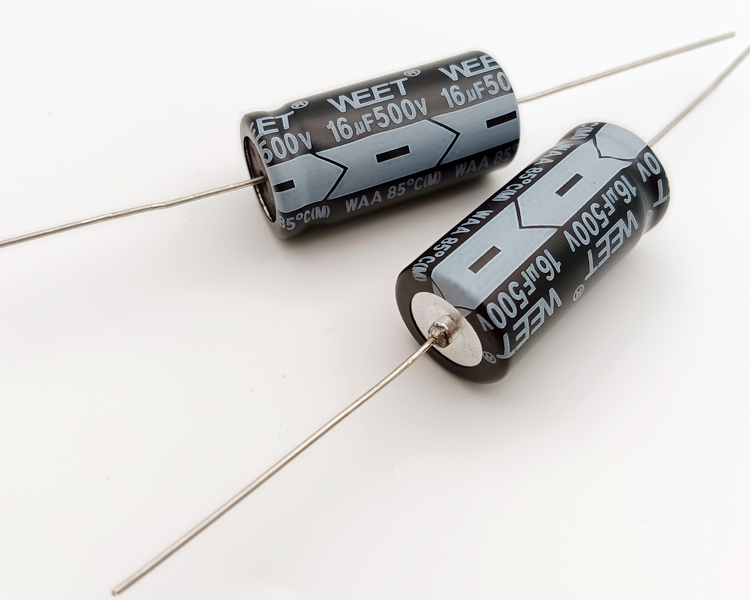

WEET-WAA-500VDC-16uF-Mundorf-Axial-Electrolytic-Capacitor-85-Deg-500V-Factory
