WEET WAC Dual Section Axial Polarized Aluminum Electrolytic Capacitors Cross to FT Type AZ

June 16, 2025

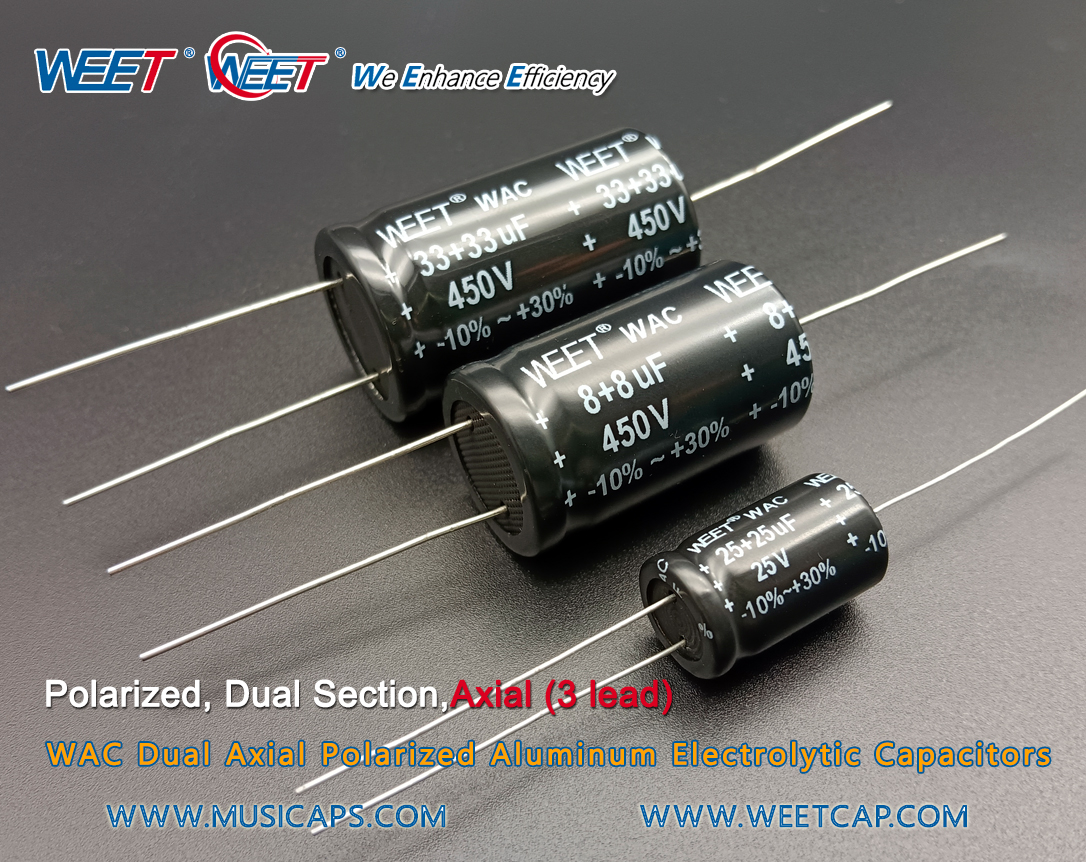

WEET WAC Dual Section Axial Polarized Aluminum Electrolytic Capacitors Cross to FT Type AZ
8µF+8µF TOL:-10%~+30%,450V Size:22*37mm (120HZ)DF≦24%
33µF+33µF TOL:-10%~+30%,450V Size:25*43mm (120HZ)DF≦24%
25µF+25µF TOL:-10%~+30%,25V Size:13*22mm (120HZ)DF≦15%

Polarized, Dual Section,Axial (3 lead)Load life of 1000 Hours
Comply with the RoHS directive
Cross to FT Type AZ
These are used as replacements for vintage equipment

Cross Reference F&T Type AZ Dual Section Electrolytic Capacitor

25uF+25uF 25Vdc F&T Type AZ Dual Section Electrolytic Capacitor, Specifications Length: 50 mm Diameter: 25 mm
8uF+8uF 450Vdc F&T Type AZ Dual Section Electrolytic Capacitor, Specifications Length: 37.5 mm Diameter: 25 mm
33uF+33uF 450Vdc F&T Type AZ Dual Section Electrolytic Capacitor, Specifications Length: 50 mm Diameter: 25 mm
