WEET WMW 100V Pure Copper Foil MKP Capacitor Low DF Best Suitable For Audio Cross Audyn True Copper Cap

WEET WMW 100V Pure Copper Foil and PP film Capacitor Low DF Best Suitable For Audio Cross Audyn True Copper Cap

DATASHEET

https://www.musicaps.com/Uploads/PDF/WEET-WMW-100V-Pure-Copper-Foil-MKP-Capacitor-Low-DF-Best-Suitable-For-Audio-Cross-Audyn-True-Copper-Cap.pdf

FEATURES

Top of the range pure copper foil capacitor

Very Low Dielectric absorption factor

Very Low Dissipation factor, Very Low ESR, Very Low Inductance

Designed specifically for passive crossovers (mainly tweeters)

Copper foil has a noticeable positive impact on the “flavor” of the sound

SPECIFICATIONS

Passive flammability	GB10191-88 IEC384-16
Operating temperature	-55℃～+85℃
Capacitance range	0.1~10uF
Capacitance tolerance	±3%， ±5% 1KHz
Rated voltage	250VDC, 400VDC,630VDC
Withstand voltage	1.6VR 5S

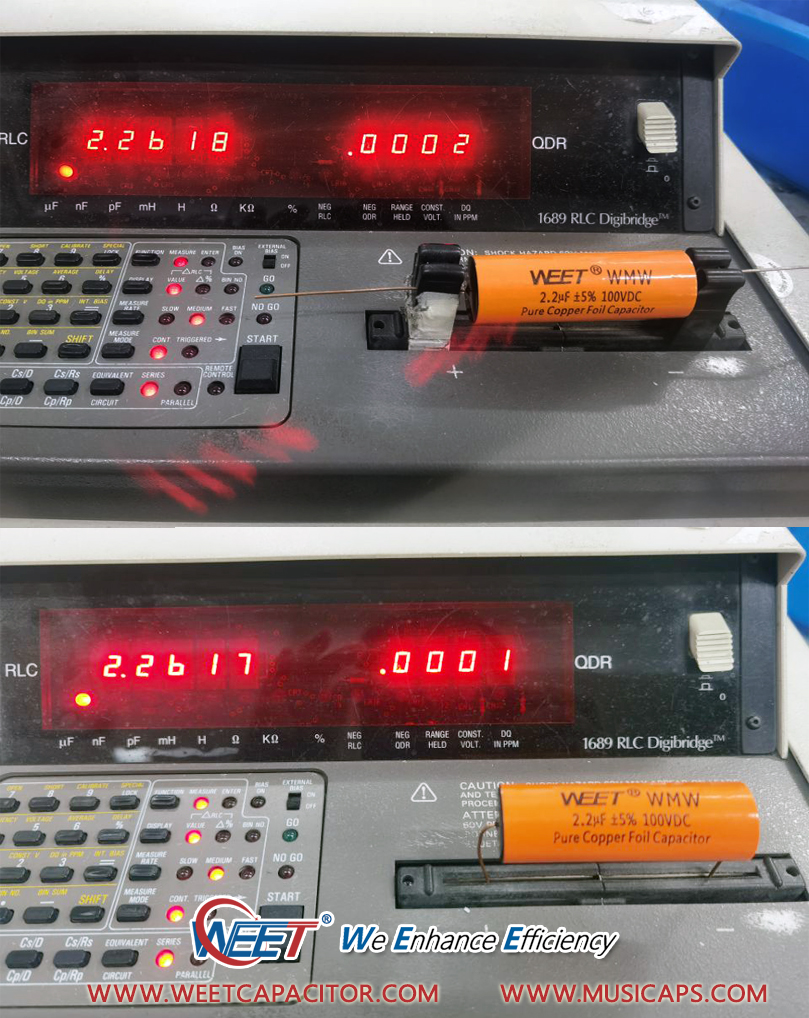

Dissipation factor	≤0.0005 1KHz
Insulate the electric resistance	CR≤0.33μF, I.R≥15,000MΩ
Insulate the electric resistance	CR>0.33μF, I.R≥5,000S
Leads Diameter	1.0 Pure Copper Wire

µF	*250V-ODL:mm**	*400V-ODL:mm**	*630V-ODL:mm**
0.1uF	15*35	16*35	18*35
0.22uF	19*35	20*35	24*35
0.33uF	22*35	23*35	20*55
0.47uF	25*35	26*35	23*55
0.68uF	20*55	21*55	27*55
0.82uF	21*55	23*55	29*55
1.0uF	23*55	25*55	32*55
2.2uF	33*55	36*55	46*55
3.3uF	39*55	44*55	56*55
4.7uF	46*55	52*55	56*70
5.6uF	51*55	47*70
6.8uF	55*55	52*70
8.2uF	51*70	57*70
10uF	56*70	63*70

Note: Other values are available on request. WEET are capable of doing custom service OEM for you

Product Description

They are also equally well suited for mid-range application, but due to the price point of these super high-end capacitors, they will most often be used for tweeter application. Copper foil has a noticeable positive impact on the “flavor” of the sound.

Winding: Copper foil spliced to polypropylene insulation film. (a layer of pure copper foil and a layer of PP film).
WEET-WMW-Audio-Capacitor-Winding-Pure-Copper-Foil-Spliced-to-Polypropylene-Insulation-PP-Film
