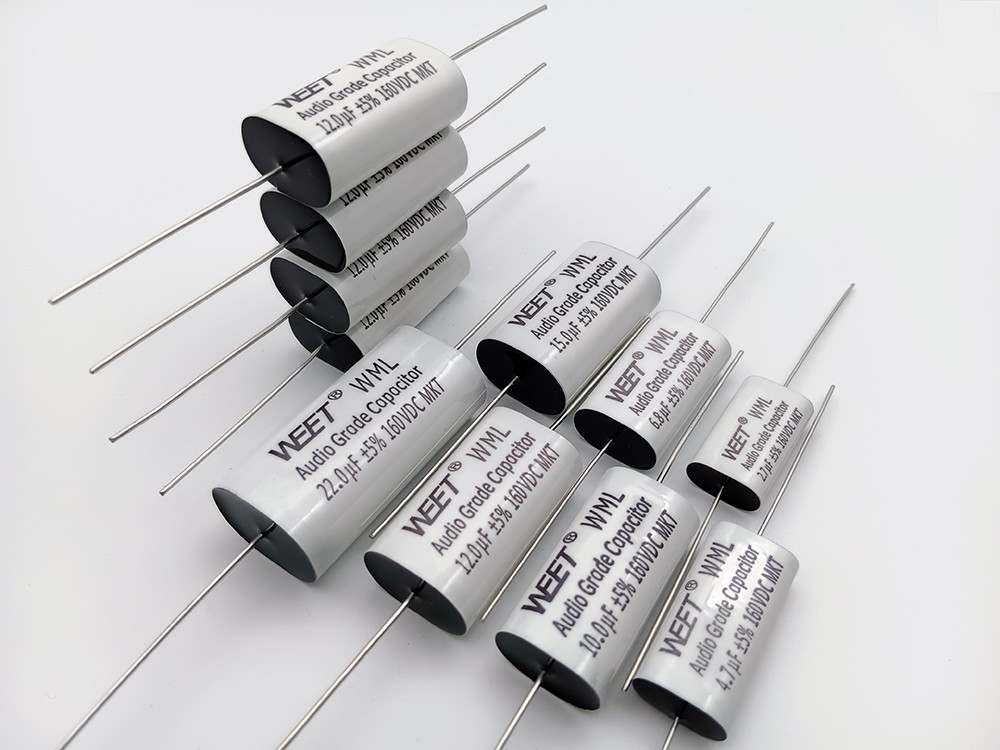

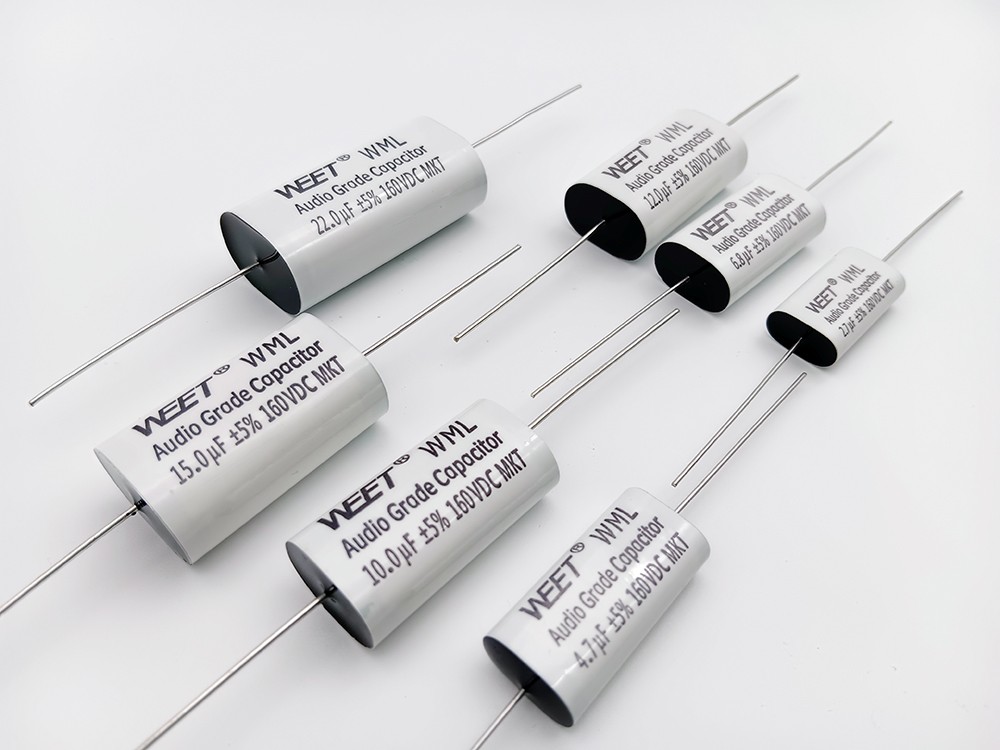

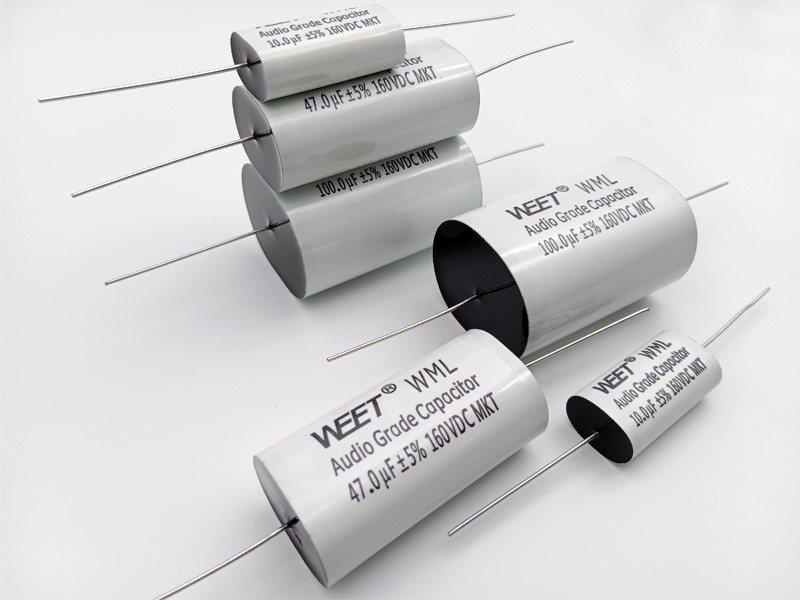

WEET WML Cross Reference to Compact MKT-Metallized Polyester Film Capacitor Axial and Oval
WML is constructed with metallized polyester film as medium and electricode, wrapped and sealed with flame-retardant plastic and epoxy resin. With high reliability, high temperature-resistance, small volume, large capacity and good self-healing property.
We have been able to make them smaller in size and with better sonic properties compared to electrolytic capacitors.
Due to their flat shape, they can be easily stacked when it is necessary to couple multiple capacitors in parallel to reach a higher capacity value for a certain crossover position.
| VDC | 160VDC | ||||
| Mfd | L | T | H | d | |
| 105 | 1 | 19 | 7 | 11 | 0.6 |
| 155 | 1.5 | 19 | 9 | 13 | 0.6 |
| 225 | 2.2 | 25 | 8 | 14 | 0.6 |
| 275 | 2.7 | 25 | 9 | 15 | 0.6 |
| 335 | 3.3 | 25 | 10 | 16 | 0.8 |
| 395 | 3.9 | 25 | 10.5 | 17 | 0.6 |
| 475 | 4.7 | 31.5 | 9.5 | 16 | 0.8 |
| 565 | 5.6 | 31.5 | 10.5 | 17 | 0.8 |
| 685 | 6.8 | 31.5 | 12 | 18 | 0.8 |
| 825 | 8.2 | 36 | 12 | 18 | 0.8 |
| 106 | 10 | 36 | 13.5 | 19.5 | 1 |
| 126 | 12 | 36 | 14.5 | 21 | 1 |
| 156 | 15 | 36 | 16.5 | 23 | 1 |
| 186 | 18 | 36 | 18.5 | 24.5 | 1 |
| 226 | 22 | 46 | 17 | 23.5 | 1 |
| 336 | 33 | 56 | 18.5 | 25 | 1 |
| 476 | 47 | 56 | 22.5 | 29 | 1 |
| 566 | 56 | 56 | 25 | 31 | 1 |
| 686 | 68 | 56 | 28 | 34 | 1 |
| 826 | 82 | 56 | 30.5 | 38 | 1 |
| 106 | 100 | 56 | 34 | 40.5 | 1 |
