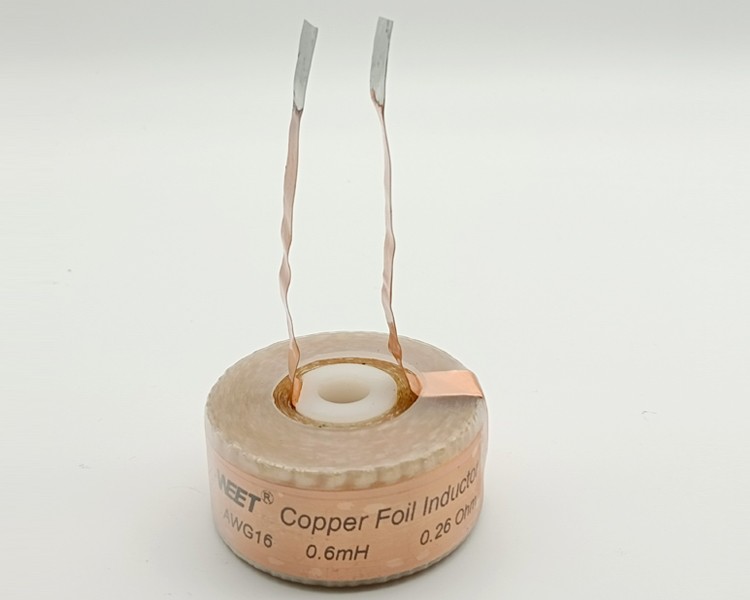

WEET WIC 16 AWG 0.6 mH Best Coils for Tube Amplifiers Low DCR and High Inductance
WIC Copper Foil Air Cored Audio Inductor, crossover coil , Inductance: 0.1~10mH, +/-5%
DATASHEET
https://www.musicaps.com/Uploads/PDF/WEET-WIC-Copper-Foil-Air-Cored-Audio-Inductor.pdf
Features:
Power type audio inductance. Suitable for bypass circuits
Has good inductance and very low distortion characteristics
Effectively improve the bass strength, reduce vibration effect distortion
Suitable for working in high-frequency circuits
Air core inductors are a great choice and the best value for building high quality crossovers.
Copper foil inductors offer a supreme response compared to their wire equivalent
Copper Air Core Coil Inductor for high quality audio speaker crossovers and to suit audiophile loudspeakers.
Our WEET WIC Copper Foils are with different Production process compared to waxed or/and oiled paper technology. We use PE film as insualtion.
PE film is a type of plastic film that serves as insulation and isolation, thank you.
Wire Types:
There are 5 wire sizes available with the following range of values, we usually do OEM for customers.
18 AWG, 16 AWG, 14 AWG, 12 AWG, 10 AWG,
Picture:
Size Table and Cross Table for reference only. Specific size should be confirmed by real products, thank you.
Other Inductance and Size are available on request，WEET is capable of doing custom service OEM for you.
| WEET Series-Wire Number-Inductance | ||||
| Item number | Item number | Item number | Item number | Item number |
| WIC-18-0,10 | WIC-16-0,10 | WIC-14-0,10 | WIC-12-0,10 | WIC-10-0,10 |
| WIC-18-0,12 | WIC-16-0,12 | WIC-14-0,12 | WIC-12-0,12 | WIC-10-0,12 |
| WIC-18-0,15 | WIC-16-0,15 | WIC-14-0,15 | WIC-12-0,15 | WIC-10-0,15 |
| WIC-18-0,18 | WIC-16-0,18 | WIC-14-0,18 | WIC-12-0,18 | WIC-10-0,18 |
| WIC-18-0,20 | WIC-16-0,20 | WIC-14-0,20 | WIC-12-0,20 | WIC-10-0,20 |
| WIC-18-0,22 | WIC-16-0,22 | WIC-14-0,22 | WIC-12-0,22 | WIC-10-0,22 |
| WIC-18-0,25 | WIC-16-0,25 | WIC-14-0,25 | WIC-12-0,25 | WIC-10-0,25 |
| WIC-18-0,27 | WIC-16-0,27 | WIC-14-0,27 | WIC-12-0,27 | WIC-10-0,27 |
| WIC-18-0,30 | WIC-16-0,30 | WIC-14-0,30 | WIC-12-0,30 | WIC-10-0,30 |
| WIC-18-0,33 | WIC-16-0,33 | WIC-14-0,33 | WIC-12-0,33 | WIC-10-0,33 |
| WIC-18-0,39 | WIC-16-0,39 | WIC-14-0,39 | WIC-12-0,39 | WIC-10-0,39 |
| WIC-18-0,47 | WIC-16-0,47 | WIC-14-0,47 | WIC-12-0,47 | WIC-10-0,47 |
| WIC-18-0,50 | WIC-16-0,50 | WIC-14-0,50 | WIC-12-0,50 | WIC-10-0,50 |
| WIC-18-0,56 | WIC-16-0,56 | WIC-14-0,56 | WIC-12-0,56 | WIC-10-0,56 |
| WIC-18-0,62 | WIC-16-0,62 | WIC-14-0,62 | WIC-12-0,62 | WIC-10-0,62 |
| WIC-18-0,68 | WIC-16-0,68 | WIC-14-0,68 | WIC-12-0,68 | WIC-10-0,68 |
| WIC-18-0,82 | WIC-16-0,82 | WIC-14-0,82 | WIC-12-0,82 | WIC-10-0,82 |
| WIC-18-1,0 | WIC-16-1,0 | WIC-14-1,0 | WIC-12-1,0 | WIC-10-1,0 |
| WIC-18-1,2 | WIC-16-1,2 | WIC-14-1,2 | WIC-12-1,2 | WIC-10-1,2 |
| WIC-18-1,5 | WIC-16-1,5 | WIC-14-1,5 | WIC-12-1,5 | WIC-10-1,5 |
| WIC-18-1,8 | WIC-16-1,8 | WIC-14-1,8 | WIC-12-1,8 | WIC-10-1,8 |
| WIC-18-2,0 | WIC-16-2,0 | WIC-14-2,0 | WIC-12-2,0 | WIC-10-2,0 |
| WIC-18-2,2 | WIC-16-2,2 | WIC-14-2,2 | WIC-12-2,2 | WIC-10-2,2 |
| WIC-18-2,7 | WIC-16-2,7 | WIC-14-2,7 | WIC-12-2,7 | WIC-10-2,7 |
| WIC-18-3,3 | WIC-16-3,3 | WIC-14-3,3 | WIC-12-3,3 | WIC-10-3,3 |
| WIC-18-3,9 | WIC-16-3,9 | WIC-14-3,9 | WIC-12-3,9 | WIC-10-3,9 |
| WIC-18-4,7 | WIC-16-4,7 | WIC-14-4,7 | WIC-12-4,7 | WIC-10-4,7 |
| WIC-18-5,6 | WIC-16-5,6 | WIC-14-5,6 | WIC-12-5,6 | WIC-10-5,6 |
| WIC-18-6,8 | WIC-16-6,8 | WIC-14-6,8 | WIC-12-6,8 | WIC-10-6,8 |
| WIC-18-8,2 | WIC-16-8,2 | WIC-14-8,2 | WIC-12-8,2 | WIC-10-8,2 |
| WIC-18-10,0 | WIC-16-10,0 | WIC-14-10,0 | WIC-12-10,0 | WIC-10-10,0 |
