WIA Air Cored Coils Crossover Inductor
WEET WIA Air Cored Coils Crossover Inductor， Inductance: 0.05~15mH, +5%
DATASHEET
https://www.musicaps.com/Uploads/PDF/WEET-WIA-Air-Cored-Coils-Crossover-Inductor.pdf
Features:
Power type audio inductance, Better linear characteristic
Excellent heat audio dissipation characteristics, Suitable for working in high-frequency circuits.
Suitable for bypass circuits
High-purity copper wire, “baked” into a perfect shape to create a distortion-free inductor,
for all audio applications.Modern self-supporting design with no need for plastic bobbins.
Low inductance tolerance of ±3%, ±5%
power handling depending on the wire used, makes it the most versatile coil on the market.
Wire Types:
There are 11 wire sizes available with the following range of values, we usually do OEM for customers.
29 AWG, wire diameter 0.3mm: 0.15mH to 10mH
26 AWG, wire diameter 0.4mm: 0.03mH to 25mH
24 AWG, wire diameter 0.5mm: 0.1mH to 27mH
22 AWG, wire diameter 0.63mm: 0.1mH to 22mH
21 AWG, wire diameter 0.7mm: 0.047mH to 35mH
20 AWG, wire diameter 0.8mm: 0.01mH to 100mH
18 AWG, wire diameter 1mm: 0.068mH to 18mH
17 AWG, wire diameter 1.2mm: 0.1mH to 22mH
15 AWG, wire diameter 1.4mm: 0.01mH to 10mH
14 AWG, wire diameter 1.6mm: 0.01mH to 15mH
13 AWG, wire diameter 1.8mm: 0.01mH to 10mH

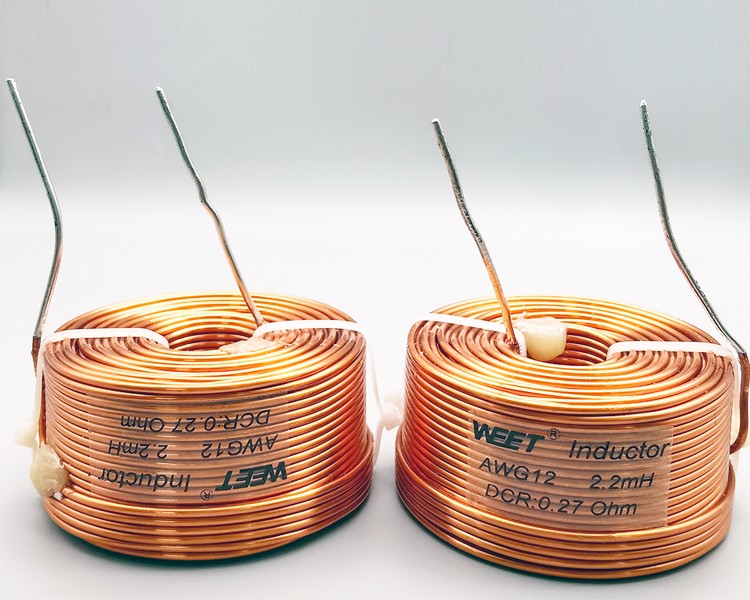

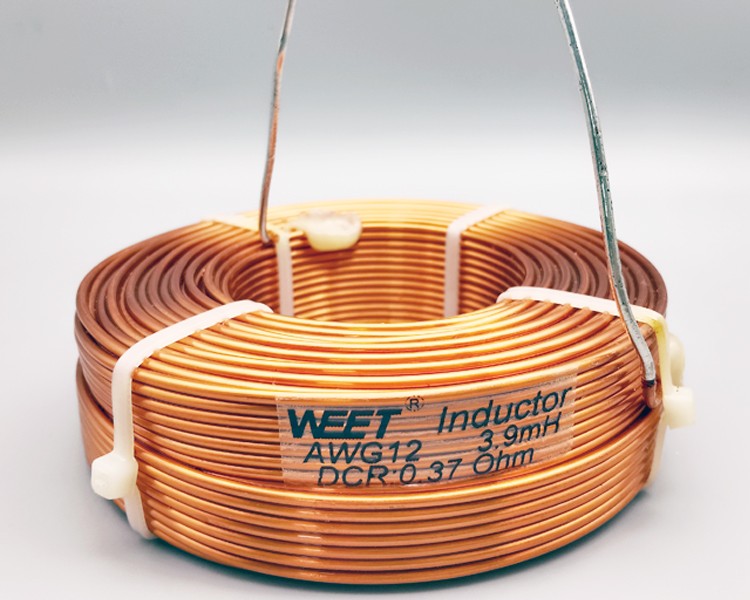

Pictures:
Size Table for reference only. Specific size should be confirmed by real products, thank you.
| WEET Series-Wire Number-Inductance | ||||||
| WEET PN | WEET PN | WEET PN | WEET PN | WEET PN | WEET PN | WEET PN |
| WIA-13-0.05 | WIA-13-0.79 | WIA-15-0.05 | WIA-17-0.05 | WIA-17-0.48 | WIA-18-0.05 | WIA-24-0.05 |
| WIA-13-0.1 | WIA-13-0.8 | WIA-15-0.08 | WIA-17-0.08 | WIA-17-0.49 | WIA-18-0.1 | WIA-24-0.1 |
| WIA-13-0.11 | WIA-13-0.82 | WIA-15-0.1 | WIA-17-0.1 | WIA-17-0.5 | WIA-18-0.11 | WIA-24-0.2 |
| WIA-13-0.12 | WIA-13-0.85 | WIA-15-0.12 | WIA-17-0.107 | WIA-17-0.52 | WIA-18-0.12 | WIA-24-0.3 |
| WIA-13-0.14 | WIA-13-0.9 | WIA-15-0.135 | WIA-17-0.11 | WIA-17-0.53 | WIA-18-0.14 | WIA-24-0.4 |
| WIA-13-0.15 | WIA-13-0.95 | WIA-15-0.15 | WIA-17-0.12 | WIA-17-0.55 | WIA-18-0.15 | WIA-24-0.5 |
| WIA-13-0.16 | WIA-13-1 | WIA-15-0.17 | WIA-17-0.135 | WIA-17-0.56 | WIA-18-0.16 | WIA-24-0.62 |
| WIA-13-0.18 | WIA-13-1.1 | WIA-15-0.174 | WIA-17-0.15 | WIA-17-0.58 | WIA-18-0.18 | WIA-24-0.7 |
| WIA-13-0.19 | WIA-13-1.2 | WIA-15-0.18 | WIA-17-0.16 | WIA-17-0.6 | WIA-18-0.19 | WIA-24-0.8 |
| WIA-13-0.2 | WIA-13-1.3 | WIA-15-0.185 | WIA-17-0.17 | WIA-17-0.62 | WIA-18-0.2 | WIA-24-0.9 |
| WIA-13-0.21 | WIA-13-1.4 | WIA-15-0.19 | WIA-17-0.18 | WIA-17-0.64 | WIA-18-0.22 | WIA-24-1 |
| WIA-13-0.22 | WIA-13-1.5 | WIA-15-0.2 | WIA-17-0.19 | WIA-17-0.65 | WIA-18-0.24 | WIA-24-1.5 |
| WIA-13-0.24 | WIA-13-1.55 | WIA-15-0.22 | WIA-17-0.2 | WIA-17-0.68 | WIA-18-0.26 | WIA-24-2 |
| WIA-13-0.26 | WIA-13-1.6 | WIA-15-0.24 | WIA-17-0.21 | WIA-17-0.7 | WIA-18-0.27 | WIA-24-2.5 |
| WIA-13-0.27 | WIA-13-1.7 | WIA-15-0.25 | WIA-17-0.22 | WIA-17-0.73 | WIA-18-0.3 | WIA-24-2.7 |
| WIA-13-0.3 | WIA-13-1.8 | WIA-15-0.26 | WIA-17-0.23 | WIA-17-0.75 | WIA-18-0.32 | WIA-24-2.8 |
| WIA-13-0.32 | WIA-13-1.85 | WIA-15-0.27 | WIA-17-0.24 | WIA-17-0.76 | WIA-18-0.33 | WIA-24-2.9 |
| WIA-13-0.33 | WIA-13-1.9 | WIA-15-0.28 | WIA-17-0.25 | WIA-17-0.77 | WIA-18-0.34 | WIA-24-3 |
| WIA-13-0.34 | WIA-13-2 | WIA-15-0.3 | WIA-17-0.26 | WIA-17-0.8 | WIA-18-0.35 | WIA-24-3.2 |
| WIA-13-0.35 | WIA-13-2.1 | WIA-15-0.31 | WIA-17-0.27 | WIA-17-0.82 | WIA-18-0.37 | WIA-24-3.3 |
| WIA-13-0.37 | WIA-13-2. | WIA-15-0.32 | WIA-17-0.28 | WIA-17-0.85 | WIA-18-0.38 | WIA-24-3.45 |
| WIA-13-0.38 | WIA-13-2.3 | WIA-15-0.33 | WIA-17-0.29 | WIA-17-0.87 | WIA-18-0.39 | WIA-24-3.6 |
| WIA-13-0.385 | WIA-13-2.4 | WIA-15-0.35 | WIA-17-0.3 | WIA-17-0.88 | WIA-18-0.4 | WIA-24-3.7 |
| WIA-13-0.39 | WIA-13-2.5 | WIA-15-0.36 | WIA-17-0.32 | WIA-17-0.9 | WIA-18-0.41 | WIA-24-3.9 |
| WIA-13-0.4 | WIA-13-2.6 | WIA-15-0.37 | WIA-17-0.33 | WIA-17-0.95 | WIA-18-0.42 | WIA-24-4 |
| WIA-13-0.41 | WIA-13-2.7 | WIA-15-0.383 | WIA-17-0.34 | WIA-17-0.96 | WIA-18-0.47 | WIA-24-4.1 |
| WIA-13-0.42 | WIA-13-2.75 | WIA-15-0.39 | WIA-17-0.35 | WIA-17-1 | WIA-18-0.49 | WIA-24-4.5 |
| WIA-13-0.47 | WIA-13-2.9 | WIA-15-0.4 | WIA-17-0.36 | WIA-17-1.1 | WIA-18-0.54 | WIA-24-4.7 |
| WIA-13-0.49 | WIA-13-3 | WIA-15-0.41 | WIA-17-0.37 | WIA-17-1.2 | WIA-18-0.56 | WIA-24-5 |
| WIA-13-0.51 | WIA-17-2.2 | WIA-15-0.42 | WIA-17-0.38 | WIA-17-1.3 | WIA-18-0.6 | WIA-24-5.6 |
| WIA-13-0.53 | WIA-17-2.3 | WIA-15-0.43 | WIA-17-0.39 | WIA-17-1.4 | WIA-18-0.62 | WIA-24-6 |
| WIA-13-0.54 | WIA-17-2.4 | WIA-15-0.44 | WIA-17-0.4 | WIA-17-1.5 | WIA-18-0.65 | WIA-24-6.2 |
| WIA-13-0.56 | WIA-17-2.5 | WIA-15-0.45 | WIA-17-0.42 | WIA-17-1.6 | WIA-18-0.68 | WIA-24-6.4 |
| WIA-13-0.6 | WIA-17-2.6 | WIA-15-0.46 | WIA-17-0.43 | WIA-17-1.7 | WIA-18-0.78 | WIA-24-6.8 |
| WIA-13-0.62 | WIA-17-2.7 | WIA-15-0.47 | WIA-17-0.44 | WIA-17-1.8 | WIA-18-0.8 | WIA-24-7 |
| WIA-13-0.65 | WIA-17-2.8 | WIA-15-0.48 | WIA-17-0.45 | WIA-17-1.9 | WIA-18-0.82 | WIA-24-7.2 |
| WIA-13-0.68 | WIA-17-2.9 | WIA-15-0.49 | WIA-17-0.46 | WIA-17-2 | WIA-18-0.85 | WIA-24-8 |
| WIA-13-0.76 | WIA-17-3 | WIA-15-0.5 | WIA-17-0.47 | WIA-17-2.1 | WIA-18-0.9 | WIA-24-8.2 |
| WIA-18-0.95 | WIA-18-1.2 | WIA-18-1.5 | WIA-18-1.8 | Other Inductance and Size are available on request，WEET is capable of doing custom service OEM for you. | ||
| WIA-18-1.0 | WIA-18-1.3 | WIA-18-1.6 | WIA-18-1.9 | |||
| WIA-18-1.1 | WIA-18-1.4 | WIA-18-1.7 | WIA-18-2 | |||
