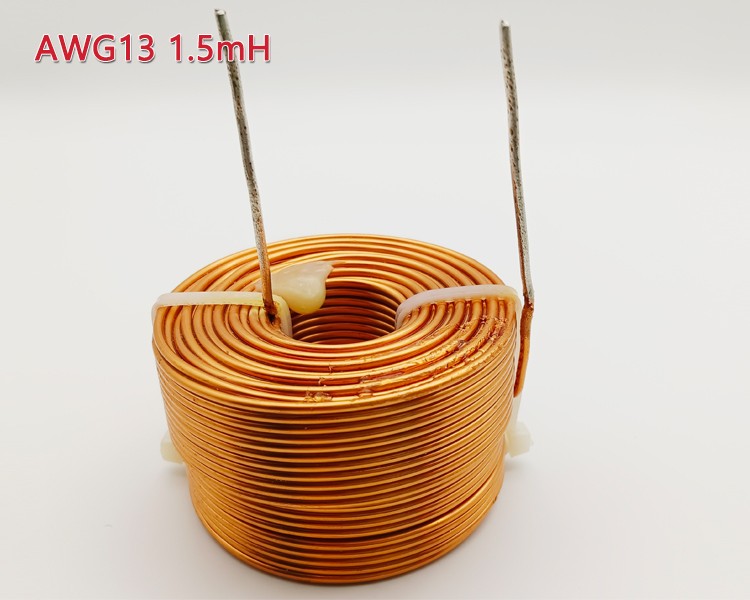

WIA AWG 13 Copper Wire Crossover Inductors
WEET WIA Air Cored Coils Crossover Inductor， Inductance: 0.05~15mH, +/-5%
DATASHEET
https://www.musicaps.com/Uploads/PDF/WEET-WIA-Air-Cored-Coils-Crossover-Inductor.pdf
Features:
Power type audio inductance, Better linear characteristic
Excellent heat audio dissipation characteristics, Suitable for working in high-frequency circuits.
Suitable for bypass circuits
High-purity copper wire, “baked” into a perfect shape to create a distortion-free inductor,
for all audio applications.Modern self-supporting design with no need for plastic bobbins.
Low inductance tolerance of ±3%, ±5%
power handling depending on the wire used, makes it the most versatile coil on the market.
Pictures:
Size Table:
Size Table and Cross Table for reference only. Specific size should be confirmed by real products, thank you.
Other Inductance and Size are available on request，WEET is capable of doing custom service OEM for you.
| WEET Series-Wire Number-Inductance | ||||||
| WEET PN | WEET PN | WEET PN | WEET PN | WEET PN | WEET PN | WEET PN |
| WIA-13-0.05 | WIA-13-0.79 | WIA-15-0.05 | WIA-17-0.05 | WIA-17-0.48 | WIA-18-0.05 | WIA-24-0.05 |
| WIA-13-0.1 | WIA-13-0.8 | WIA-15-0.08 | WIA-17-0.08 | WIA-17-0.49 | WIA-18-0.1 | WIA-24-0.1 |
| WIA-13-0.11 | WIA-13-0.82 | WIA-15-0.1 | WIA-17-0.1 | WIA-17-0.5 | WIA-18-0.11 | WIA-24-0.2 |
| WIA-13-0.12 | WIA-13-0.85 | WIA-15-0.12 | WIA-17-0.107 | WIA-17-0.52 | WIA-18-0.12 | WIA-24-0.3 |
| WIA-13-0.14 | WIA-13-0.9 | WIA-15-0.135 | WIA-17-0.11 | WIA-17-0.53 | WIA-18-0.14 | WIA-24-0.4 |
| WIA-13-0.15 | WIA-13-0.95 | WIA-15-0.15 | WIA-17-0.12 | WIA-17-0.55 | WIA-18-0.15 | WIA-24-0.5 |
| WIA-13-0.16 | WIA-13-1 | WIA-15-0.17 | WIA-17-0.135 | WIA-17-0.56 | WIA-18-0.16 | WIA-24-0.62 |
| WIA-13-0.18 | WIA-13-1.1 | WIA-15-0.174 | WIA-17-0.15 | WIA-17-0.58 | WIA-18-0.18 | WIA-24-0.7 |
| WIA-13-0.19 | WIA-13-1.2 | WIA-15-0.18 | WIA-17-0.16 | WIA-17-0.6 | WIA-18-0.19 | WIA-24-0.8 |
| WIA-13-0.2 | WIA-13-1.3 | WIA-15-0.185 | WIA-17-0.17 | WIA-17-0.62 | WIA-18-0.2 | WIA-24-0.9 |
| WIA-13-0.21 | WIA-13-1.4 | WIA-15-0.19 | WIA-17-0.18 | WIA-17-0.64 | WIA-18-0.22 | WIA-24-1 |
| WIA-13-0.22 | WIA-13-1.5 | WIA-15-0.2 | WIA-17-0.19 | WIA-17-0.65 | WIA-18-0.24 | WIA-24-1.5 |
| WIA-13-0.24 | WIA-13-1.55 | WIA-15-0.22 | WIA-17-0.2 | WIA-17-0.68 | WIA-18-0.26 | WIA-24-2 |
| WIA-13-0.26 | WIA-13-1.6 | WIA-15-0.24 | WIA-17-0.21 | WIA-17-0.7 | WIA-18-0.27 | WIA-24-2.5 |
| WIA-13-0.27 | WIA-13-1.7 | WIA-15-0.25 | WIA-17-0.22 | WIA-17-0.73 | WIA-18-0.3 | WIA-24-2.7 |
| WIA-13-0.3 | WIA-13-1.8 | WIA-15-0.26 | WIA-17-0.23 | WIA-17-0.75 | WIA-18-0.32 | WIA-24-2.8 |
| WIA-13-0.32 | WIA-13-1.85 | WIA-15-0.27 | WIA-17-0.24 | WIA-17-0.76 | WIA-18-0.33 | WIA-24-2.9 |
| WIA-13-0.33 | WIA-13-1.9 | WIA-15-0.28 | WIA-17-0.25 | WIA-17-0.77 | WIA-18-0.34 | WIA-24-3 |
| WIA-13-0.34 | WIA-13-2 | WIA-15-0.3 | WIA-17-0.26 | WIA-17-0.8 | WIA-18-0.35 | WIA-24-3.2 |
| WIA-13-0.35 | WIA-13-2.1 | WIA-15-0.31 | WIA-17-0.27 | WIA-17-0.82 | WIA-18-0.37 | WIA-24-3.3 |
| WIA-13-0.37 | WIA-13-2. | WIA-15-0.32 | WIA-17-0.28 | WIA-17-0.85 | WIA-18-0.38 | WIA-24-3.45 |
| WIA-13-0.38 | WIA-13-2.3 | WIA-15-0.33 | WIA-17-0.29 | WIA-17-0.87 | WIA-18-0.39 | WIA-24-3.6 |
| WIA-13-0.385 | WIA-13-2.4 | WIA-15-0.35 | WIA-17-0.3 | WIA-17-0.88 | WIA-18-0.4 | WIA-24-3.7 |
| WIA-13-0.39 | WIA-13-2.5 | WIA-15-0.36 | WIA-17-0.32 | WIA-17-0.9 | WIA-18-0.41 | WIA-24-3.9 |
| WIA-13-0.4 | WIA-13-2.6 | WIA-15-0.37 | WIA-17-0.33 | WIA-17-0.95 | WIA-18-0.42 | WIA-24-4 |
| WIA-13-0.41 | WIA-13-2.7 | WIA-15-0.383 | WIA-17-0.34 | WIA-17-0.96 | WIA-18-0.47 | WIA-24-4.1 |
| WIA-13-0.42 | WIA-13-2.75 | WIA-15-0.39 | WIA-17-0.35 | WIA-17-1 | WIA-18-0.49 | WIA-24-4.5 |
| WIA-13-0.47 | WIA-13-2.9 | WIA-15-0.4 | WIA-17-0.36 | WIA-17-1.1 | WIA-18-0.54 | WIA-24-4.7 |
| WIA-13-0.49 | WIA-13-3 | WIA-15-0.41 | WIA-17-0.37 | WIA-17-1.2 | WIA-18-0.56 | WIA-24-5 |
| WIA-13-0.51 | WIA-17-2.2 | WIA-15-0.42 | WIA-17-0.38 | WIA-17-1.3 | WIA-18-0.6 | WIA-24-5.6 |
| WIA-13-0.53 | WIA-17-2.3 | WIA-15-0.43 | WIA-17-0.39 | WIA-17-1.4 | WIA-18-0.62 | WIA-24-6 |
| WIA-13-0.54 | WIA-17-2.4 | WIA-15-0.44 | WIA-17-0.4 | WIA-17-1.5 | WIA-18-0.65 | WIA-24-6.2 |
| WIA-13-0.56 | WIA-17-2.5 | WIA-15-0.45 | WIA-17-0.42 | WIA-17-1.6 | WIA-18-0.68 | WIA-24-6.4 |
| WIA-13-0.6 | WIA-17-2.6 | WIA-15-0.46 | WIA-17-0.43 | WIA-17-1.7 | WIA-18-0.78 | WIA-24-6.8 |
| WIA-13-0.62 | WIA-17-2.7 | WIA-15-0.47 | WIA-17-0.44 | WIA-17-1.8 | WIA-18-0.8 | WIA-24-7 |
| WIA-13-0.65 | WIA-17-2.8 | WIA-15-0.48 | WIA-17-0.45 | WIA-17-1.9 | WIA-18-0.82 | WIA-24-7.2 |
| WIA-13-0.68 | WIA-17-2.9 | WIA-15-0.49 | WIA-17-0.46 | WIA-17-2 | WIA-18-0.85 | WIA-24-8 |
| WIA-13-0.76 | WIA-17-3 | WIA-15-0.5 | WIA-17-0.47 | WIA-17-2.1 | WIA-18-0.9 | WIA-24-8.2 |
| WIA-18-0.95 | WIA-18-1.2 | WIA-18-1.5 | WIA-18-1.8 | Other Inductance and Size are available on request，WEET is capable of doing custom service OEM for you. | ||
| WIA-18-1.0 | WIA-18-1.3 | WIA-18-1.6 | WIA-18-1.9 | |||
| WIA-18-1.1 | WIA-18-1.4 | WIA-18-1.7 | WIA-18-2 | |||
