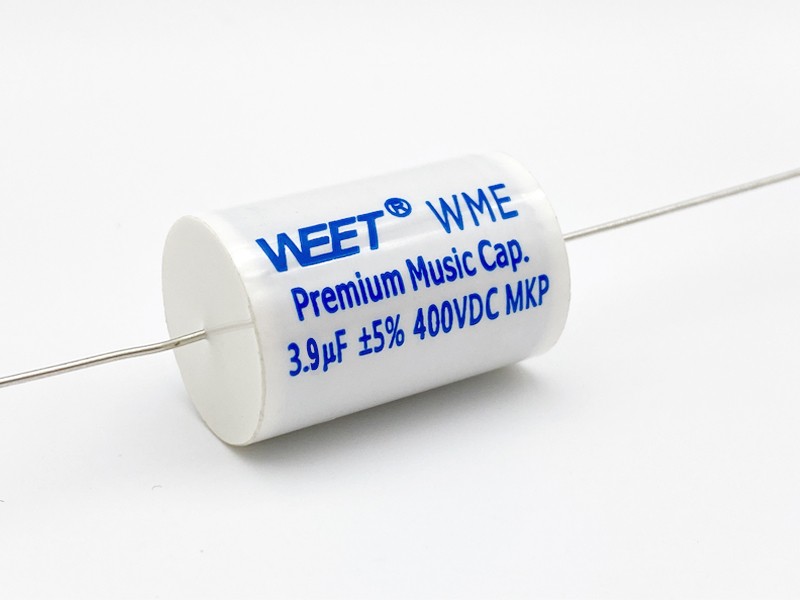

WME 400V 3.9uF MKP Music Capacitors

WEET WME Premium Music Capacitors Crossover HIFI Audio Application Polypropylene Film Capacitor

 Datasheet

www.musicaps.com/Uploads/PDF/WEET-WME-Premium-Music-Capacitors-Crossover-HIFI-Audio-Application-Polypropylene-Film-Capacitor.pdf

Features

• WEET WME axial metallized polypropylene film capacitor is made of vacuum aluminum plated polypropylene filmas the combination of dielectric and electrode.

• The electrode is led out by tinned copper wire and filled with 94V-0 epoxy resin.

• Capacitance range from 0.1uF~100uF, rated voltage are 50V、100V、250V、400V、630V、1000VDC.

• Quick transient design, High Precise Capacitance ±1%, ±2%, ±3%, ±5%

• Very Low Dielectric absorption factor, Very Low Dissipation factor, Very Low ESR, Very Low Inductance

Main Applications

MKP audio capacitor, Audio Grade Capacitors, Audiophiler MKP, MKP Axial Capacitor 400V , Polypropylene Film, HiFi Audio MKP Capacitor, non-polarized metalized polypropylene crossover capacitors , bi-polar Audio Crossover Capacitor Amplifier Module. WEET WME MKP Polypropylene Premium Music Precise Audio Low DF Film Audiophile Capacitor for Crossover and SpeakerLow voltage 50V, 100V.DC and High Precise Capacitance ±1%, ±2% are low voltage polypropylene audio capacitors in small size, which is very suitable for RIAA type filters.

Cross Reference

WEET audio capacitors can replace ERSE, Mundorf - MCAP MKP, Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm audio series. WME capacitors are your standard choice for all of your loudspeaker projects.This high quality Premium Audio film capacitor provide perfect sound quality. Excellent handling of high current audio pulses, typical applications include General DC Applications, Wave filtering, Bypass, Coupling and decoupling, High end Crossover

Customer Reviews

Well, after plenty of burn-in time (that they need to open-up) they deliver a wide and open sound stage. Nice and neutral,
 WEET WME Premium sounds quite organized when compared with other standard MKP's in this price range.
 Like all basic MKP's thay can get a bit muddled when complex programme material is fed to them
 but they do have a certain tidyness to them which makes them go further before that sets in.
 The WME Premium is reasonably well balanced and neutral and in a positive way nothing sticks out.
 This works especially well on recordings of jazz-trio's or other small ensembles making it easier to pick out the details.
 The Clarity Cap SA and ESA will give you more image depth and richer harmonic overtones and the Mundorf EVO Oil
 will give you sharper leading edges to notes but it must be stated that those capacitors are in a higher price bracket.
 It is just to give you an idea in what sound quality range we are looking at here.

WME: The WME, like the WMC, is very compact, with an attractive white tape wrap. Performance and character are quite similar,
 but subjectively it appears to make further gains in transients through the crossover range where the capacitor has its greatest influence on the sound

--- From Mr Stefan Whatcott, United Kingdom

Check WEET Workshop and Manufacturing process

For other voltage and capacitance, please check with WEET sales. WEET is capable of doing custom service for you. Thank you.
