WEET What Are The Structural Features Of Snap In PCB Electrolytic Capacitor?

January 20, 2026

As a common electronic component, snap in PCB electrolytic capacitor feature unique structural designs and excellent functionality.

INTRODUCTION

First of all, in terms of shell material, snap in PCB electrolytic capacitor usually adopt aluminum casings. Aluminum boasts good heat dissipation performance, which helps the capacitors maintain a stable temperature during long-term operation, thereby extending their service life.

In terms of internal structure, these snap in capacitor up to 105°C use aluminum foil, which increases the electrode area and improves the capacitance value.

The pin design is a distinctive feature of these capacitors. The horn-shaped pins not only facilitate installation and soldering on circuit boards but also save space.

In addition, snap in capacitor up to 105°C emphasize sealing performance in their structure. The precision sealing design effectively prevents external moisture, dust, and other contaminants from entering the interior, thus protecting the performance and service life of the capacitors.

SUMMARY

With their unique structural characteristics, snap in PCB electrolytic capacitor meet the diverse needs of various electronic devices and provide reliable capacitive support for the stable operation of circuits.

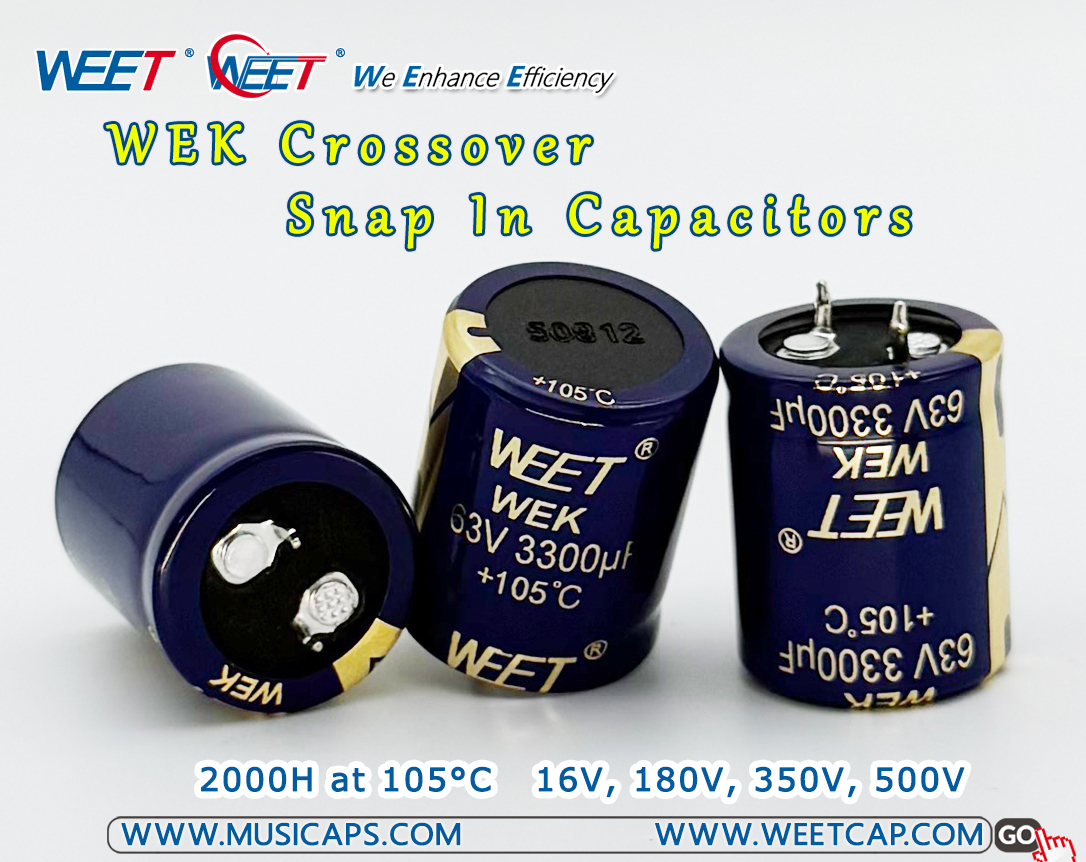

WEET WEK Audio Capacitor

• Compact size, 2,000-hour service life at 105°C.

• Rated voltage options: 16V, 180V, 350V, 500V.

• Premium aluminum material.

Feel free to contact our sales team at any time!

More details: WEET-WEK-2000H-at-105C-Audio-Crossover-Snap-in-Aluminum-Electrolytic-Capacitors
